NIBCO INC MA611AH S45TB-E 4 SOC TU BV EPDM PVC

Product Description

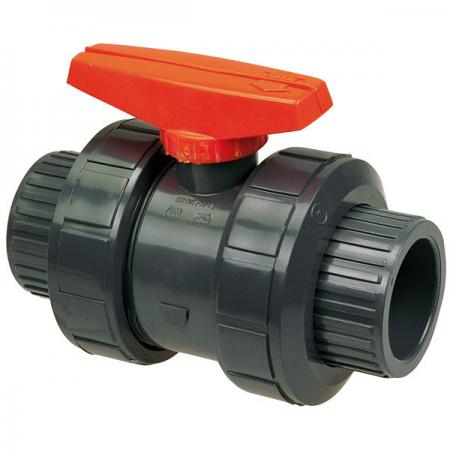

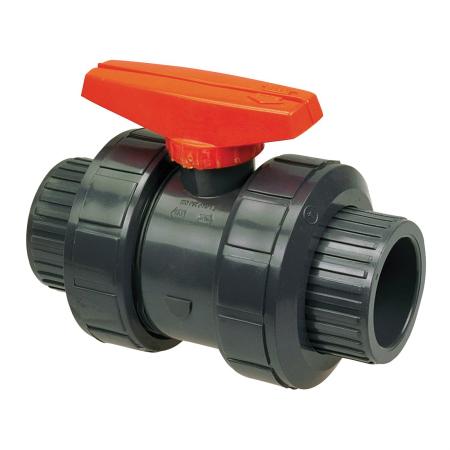

NIBCO INC MA611AH S45TB-E is a four-inch socket true union ball valve made from PVC. This valve operates at a pressure of one hundred fifty psi and has a maximum temperature rating of seventy-three degrees Fahrenheit. It features a full port, making it suitable for various applications involving water media.

• Size: Four inches nominal
• Material: PVC with EPDM O-rings
• Design: True Bloc® for enhanced performance

Product Highlights

This valve is designed to handle chemical processes, irrigation, and chilled water distribution. It is ideal for industrial plating and chemical drainage. Do not use with compressed air or gases.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923741028

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: Seventeen point six three inches
• Media: Water
• Nominal Size: Four inches
• Orifice Size: Four inches
• Port Type: Full
• Pressure Rating: One hundred fifty psi
• Series: S45TB-E
• Softgoods Material: EPDM/FKM
• Temperature Rating: Seventy-three degrees Fahrenheit
• Top to Inlet Center: Six point zero five inches
• Trim Material: PVC Stem and PTFE Seat
