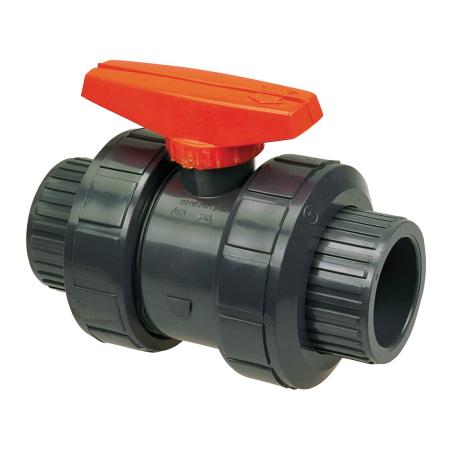

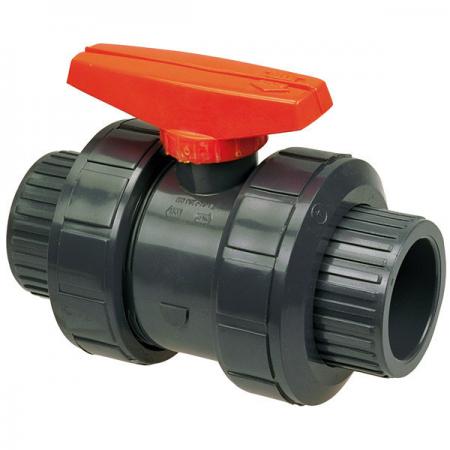

NIBCO INC MA611AF S45TB-E 3 SOC TU BV EPDM PVC

Product Description

The NIBCO INC MA611AF S45TB-E is a True Union Ball Valve designed for reliable performance in various applications. This valve features a three-inch nominal size and utilizes socket connections, capable of withstanding a pressure rating of 150 psi. It is suitable for use with water media and operates efficiently within a temperature range of up to seventy-three degrees Fahrenheit.

• True Bloc design for enhanced stability.
• EPDM O-rings provide long-lasting sealing.
• Full port design allows for maximum flow without restrictions.

Product Highlights

This valve is ideal for chemical processing, industrial plating, and irrigation systems. Its robust construction and high-efficiency design make it suitable for demanding environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Series: S45TB-E

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• End Style: Socket
• Nominal Size: 3 in
• Orifice Size: 3 in
• Pressure Rating: 150 psi
• Temperature Rating: 73 deg F
• Inlet to Outlet Length: 14.63 in
• Top to Inlet Center: 5.59 in
• Softgoods Material: EPDM/FKM
• Trim Material: PVC Stem and PTFE Seat
