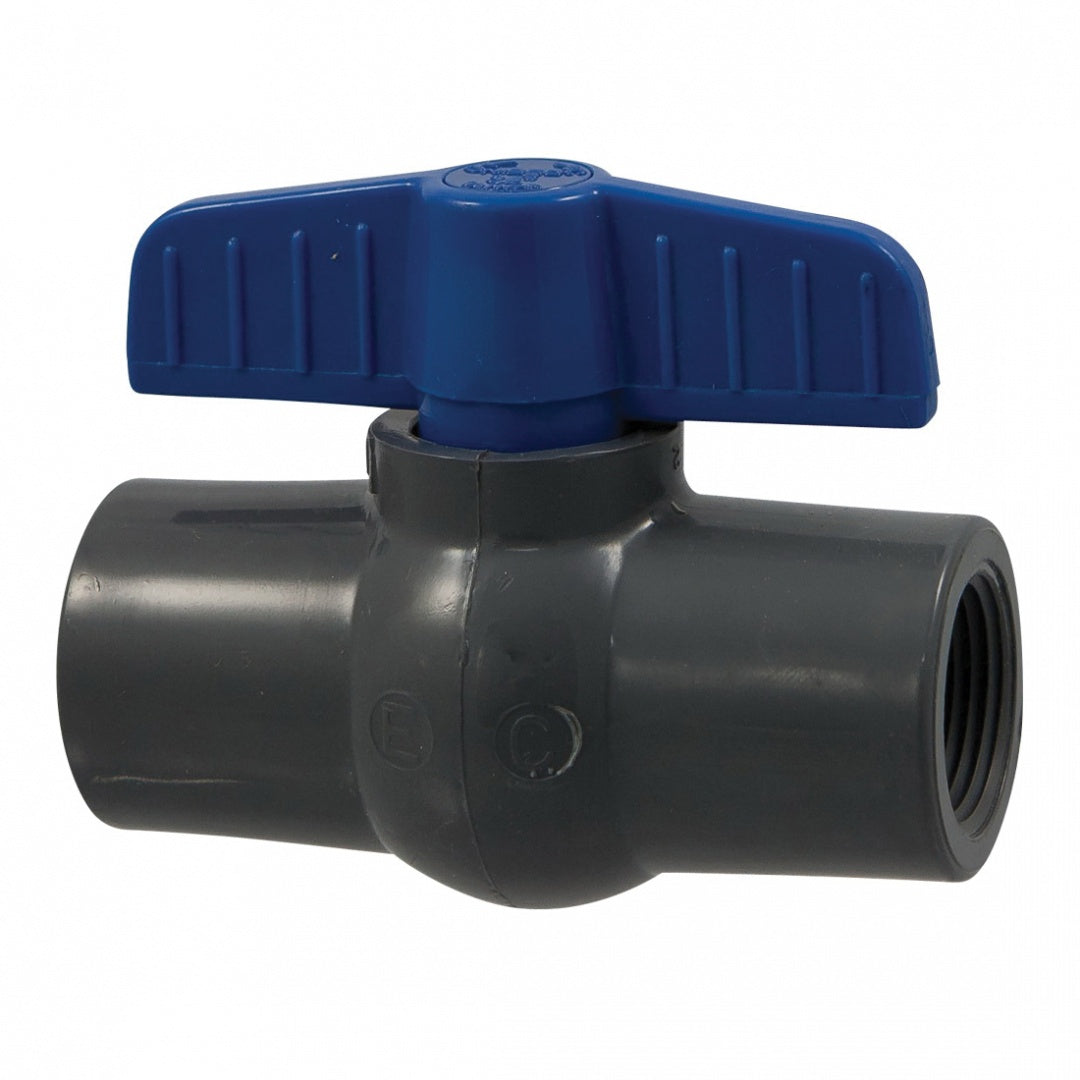

NIBCO INC MA065AB T45CE-E 11/4 THD PVC BALL VALVE

Product Description

NIBCO INC introduces the MA065AB T45CE-E 11/4 THD PVC Ball Valve. This ball valve is designed for use with water media and features a nominal size of one and one-fourth inches. It is ideal for plumbing applications where reliable flow control is essential.

• 150 psi pressure rating for water at seventy-three degrees Fahrenheit.
• PVC body and ball materials ensure durability and resistance to corrosion.
• Compact design with a threaded end style for easy installation.

Product Highlights

The valve assembly includes EPDM O-rings and operates efficiently within its pressure limits. It should not be used with compressed air or other gases.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Nominal Size: 1-1/4 in

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Import
• End Style: Thread
• Inlet to Outlet Length: 4.48 in
• Media: Water
• Orifice Size: 1.18 in
• Pressure Rating: 150 psi
• Series: T-45-CE-E
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• Top to Inlet Center: 2.64 in
• Trim Material: PVC Stem
• Type: Compact
