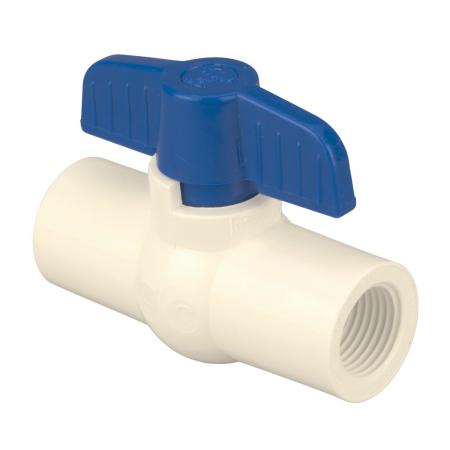

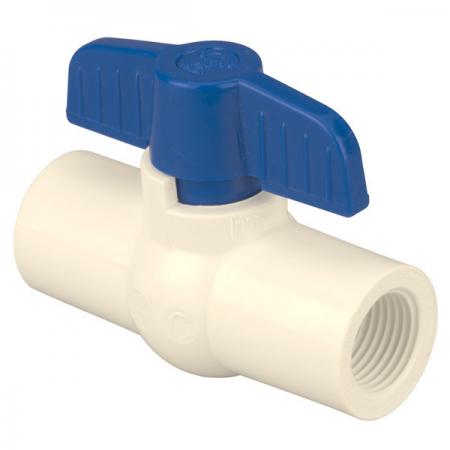

NIBCO INC MA0113D 4660T 2 TXT PVC BALL VALVE

Product Description

NIBCO INC, MA0113D, is a 1-piece PVC ball valve with a nominal size of two inches, featuring an NPT end style. It has a pressure rating of one hundred fifty psi and can withstand temperatures up to one hundred forty degrees Fahrenheit. This valve is suitable for use with water and has a handle actuator for easy operation.

• 150 psi non-shock cold working pressure at seventy-three degrees Fahrenheit
• Two ports and ways
• Maximum service temperature of one hundred thirteen degrees Fahrenheit at one hundred twelve psi

Product Highlights

The NIBCO MA0113D is designed for applications such as irrigation, pool and spa systems, as well as potable and chilled water systems. It complies with various standards including ANSI B1.20.1 and NSF/UP/ANSI 61.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Nominal Size: 2 in

Technical Specifications

• Actuator Type: Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: NPT
• Inlet to Outlet Length: 5.79 in
• Media: Water
• Orifice Size: 1.83 in
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 deg F
• Top to Inlet Center: 3-1/2 in
• Trim Material: PTFE
