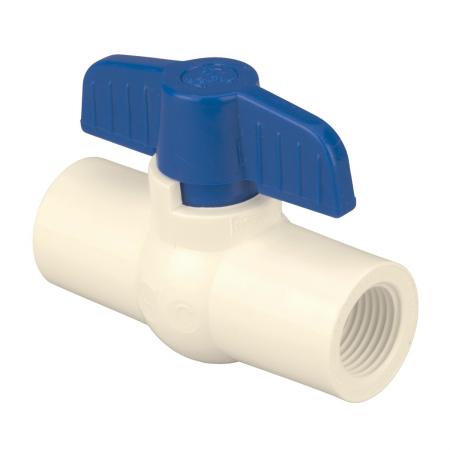

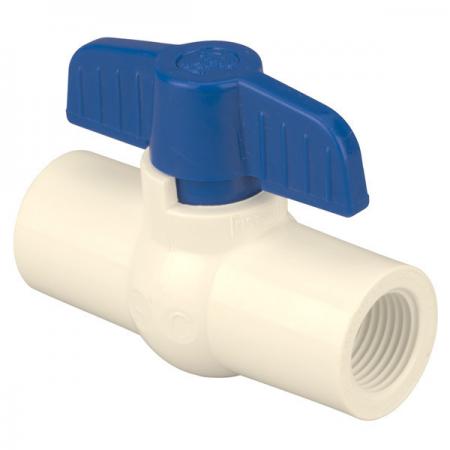

NIBCO INC MA0113A 4660T 1 TXT PVC BALL VALVE

Product Description

The NIBCO INC MA0113A 4660T 1 TXT PVC BALL VALVE is a 1-piece ball valve designed for various applications. This valve features FNPT ends and a maximum pressure rating of 150 psi. It is compatible with cold water systems including irrigation and pool applications, making it suitable for potable water and chilled water uses.

• 1 in nominal size
• Lever handle actuator
• Constructed from durable PVC

Product Highlights

This ball valve is designed for efficient control of water flow. The 4.17-inch inlet to outlet length and 2.56-inch top to inlet center dimension make it easy to fit into existing plumbing systems.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Warranty: 5 years limited

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 4.17 inches
• Nominal Size: 1 inch
• Orifice Size: 0.98 inches
• Pressure Rating: 150 psi
• Series: 4660-T
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 140 degrees F
• Top to Inlet Center: 2.56 inches
• Type: 1-Piece
