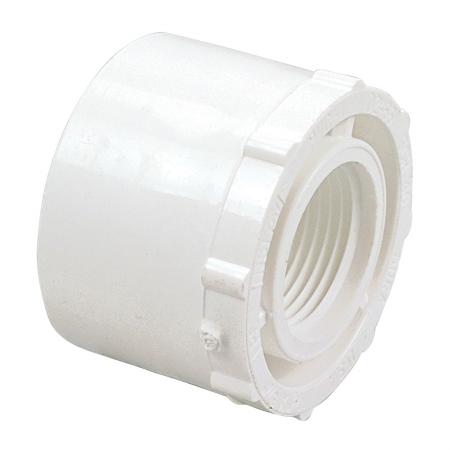

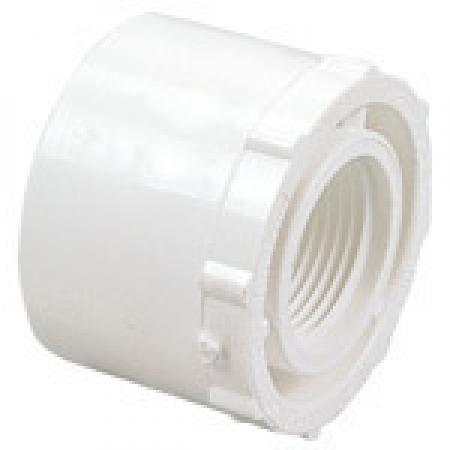

NIBCO INC L17960YP 438-338 3X2 SPXF RED BUSH PVC 40 PUR

Product Description

The NIBCO INC bushing, MPN L17960YP, is designed for use in various piping applications. This bushing features a nominal size of three inches by two inches. It has a male spigot to female NPT connection type, with a length of two and one-sixteenth inches. The product adheres to Schedule 40 standards and is constructed from PVC material suitable for a service temperature of up to one hundred forty degrees Fahrenheit.

• Do not test or use with compressed air or other gases.
• Compatible with irrigation systems, pool and spa applications, and both potable and chilled water systems.
• Approvals include ASTM D2466/D1784, NSF/ANSI 61, and UL 94V-0.

Product Highlights

This bushing provides reliable function and quality in multiple plumbing settings.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923135063

Technical Specifications

• Domestic/Import: Domestic
• End Style: Male Spigot x FNPT
• Fitting/Connector Type: Bushing
• Length: 2-1/16 inches
• Material: PVC
• Nominal Size: 3 x 2 inches
• Schedule Rating: SCH 40/STD
• Series: 4618-3
• Temperature Rating: 140 deg F Service
