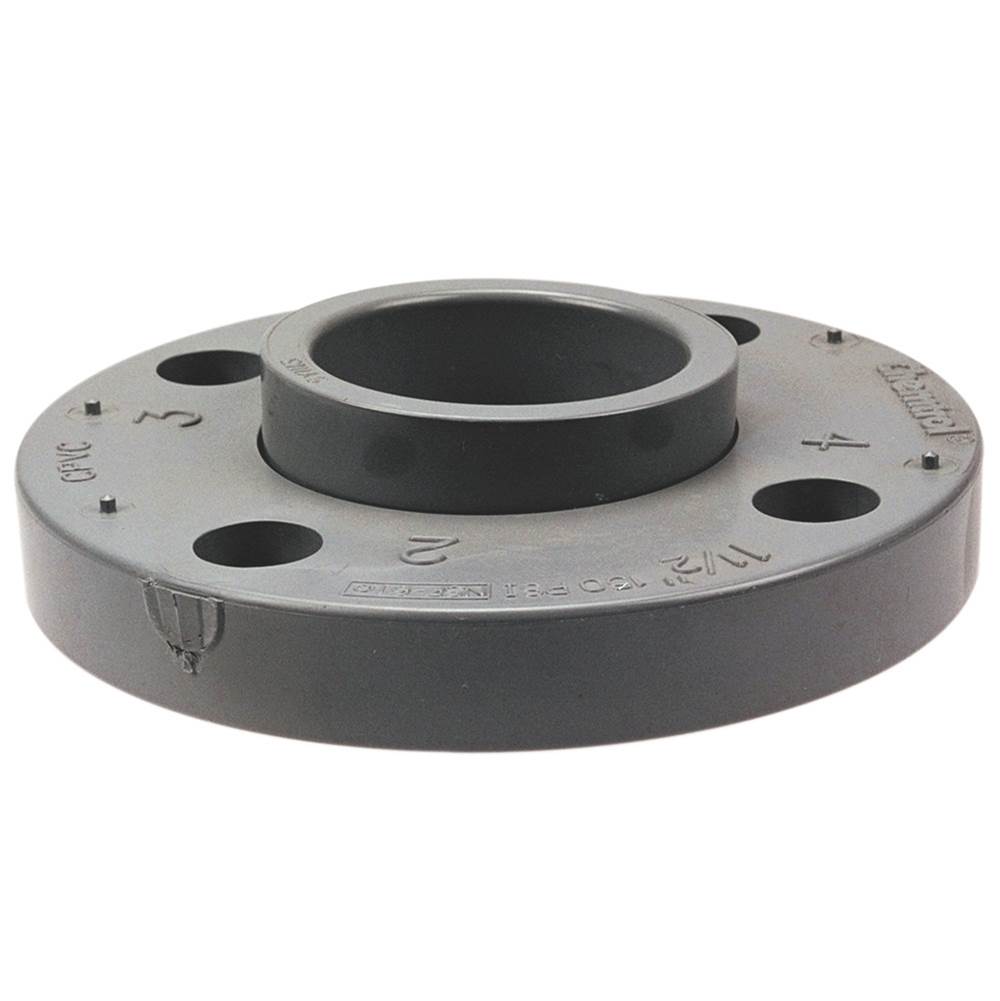

NIBCO INC CB19725 5151A 2 SOC VST FLG CPVC

Product Description

NIBCO INC CB19725 is a two-piece van stone flange made from CPVC material. It is designed for use in various piping and fitting applications. This flange fits a nominal size of two inches, with an inside diameter of three point four one inches and an outside diameter of five point nine eight inches. Its thickness measures one point six two inches, suitable for handling pressures up to one hundred fifty pounds.

• Socket x Flanged connection type
• Temperature rating of two hundred ten degrees Fahrenheit
• Designed for domestic use

Product Highlights

This flange is compatible with ANSI B16.5 Class 150 and features a webbed ring design with a separate rotating hub. It is ideal for chemical processing, industrial plating, and more.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923185020

Technical Specifications

• Connection Type: Socket
• Domestic/Import: Domestic
• Inside Diameter: 3.41 in
• Material: CPVC
• Nominal Size: 2 in
• Outside Diameter: 5.98 in
• Pressure Class: 150 lb
• Schedule Rating: SCH 80/XH
• Series: 5151-A
• Temperature Rating: 210 deg F Service
• Thickness: 1.62 in
• Type: 2-Piece Van Stone
