NIBCO INC CA24450 4551H3 2-1/2 HD THD FLG PVC 80

Product Description

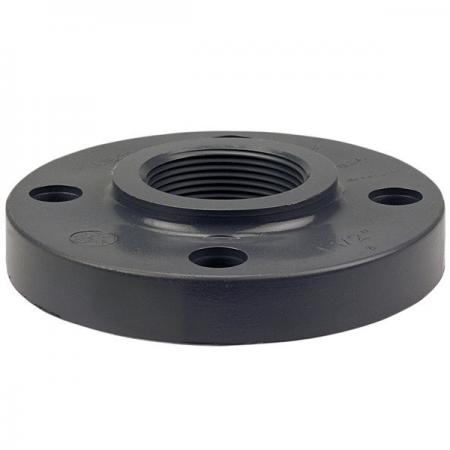

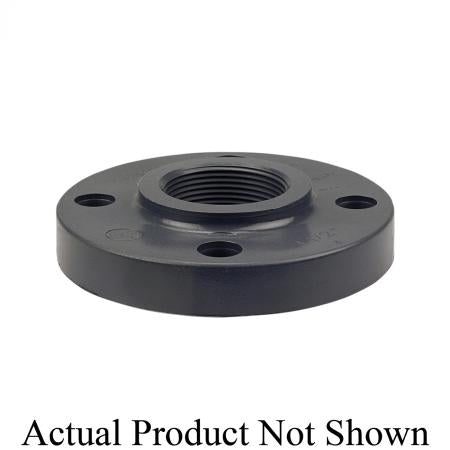

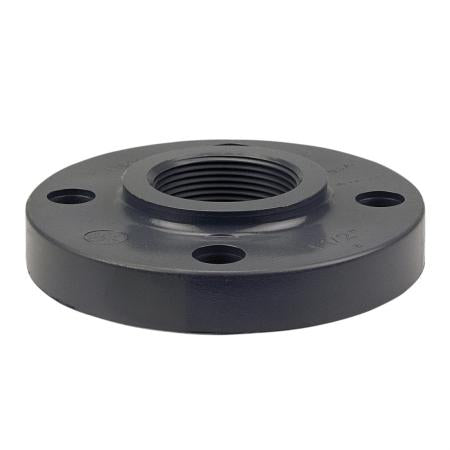

NIBCO INC presents the CA24450 flange for piping systems. It is a heavy-duty PVC flange with a nominal size of two and one-half inches. This model features a thread x flanged connection type, suitable for various applications in industrial settings.

• Designed for use with ANSI B16.5 Class 150 standards
• Compatible with a temperature service rating of 140 degrees Fahrenheit
• Made from durable PVC material for long-lasting performance

Product Highlights

The NIBCO CA24450 is constructed with a solid one-piece design and is rated for a pressure class of 150 lb. It is ideal for chemical processing, and industrial plating applications.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• UPC: 039923281258

Technical Specifications

• Color: Dark Gray
• Connection Type: Thread
• Domestic/Import: Domestic
• Material: PVC
• Nominal Size: 2-1/2 inches
• Pressure Class: 150 lb
• Schedule Rating: SCH 80/XH
• Series: 4551-H-3
• Temperature Rating: 140 degrees Fahrenheit Service
• Thickness: 1.02 inches
• Type: Heavy Duty 1-Piece Solid
