NIBCO INC CA24150 4551H3 2 HD THD FLG PVC 80 852-H20

Product Description

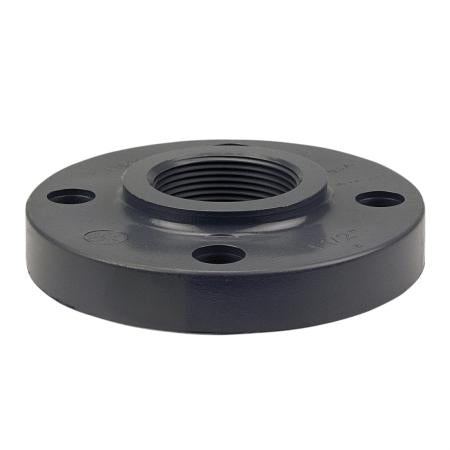

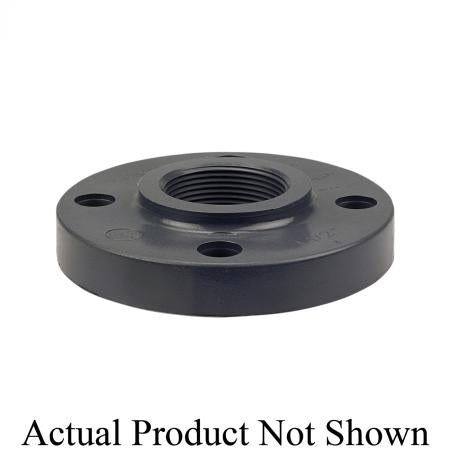

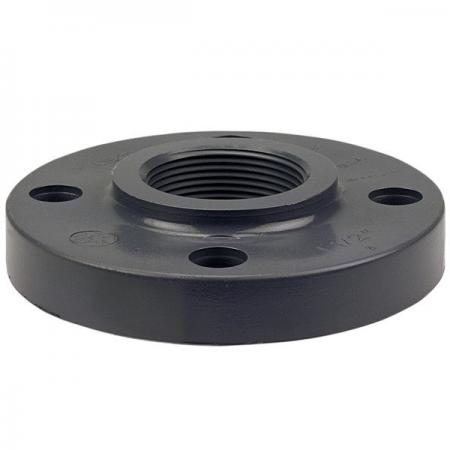

NIBCO INC provides the CA24150, a heavy-duty flange fitting for various plumbing applications. This product is part of the 4551H3 series and features a two-inch nominal size. The fitting can withstand a pressure class of one hundred fifty pounds and operates effectively within a temperature rating of up to one hundred forty degrees Fahrenheit.

• Heavy-duty, one-piece solid construction
• Compatible with female NPT threads and ANSI B16.5 Class 150 connections
• Designed for chemical processing and chilled water distribution applications

Product Highlights

Manufactured from durable PVC material, the CA24150 is ideal for installations requiring reliable performance in high-demand environments.

Product Information

Standard Information

• Manufacturer: NIBCO INC
• Type: Heavy Duty 1-Piece Solid

Technical Specifications

• Color: Dark Gray
• Connection Type: Thread
• Domestic/Import: Domestic
• Material: PVC
• Nominal Size: 2 in
• Pressure Class: 150 lb
• Schedule Rating: SCH 80/XH
• Series: 4551-H-3
• Temperature Rating: 140 deg F Service
• Thickness: 0.92 in
