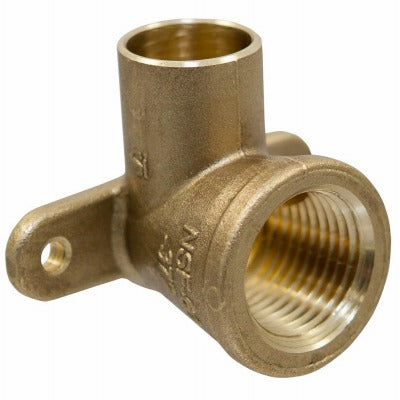

Nibco Inc BF0185LC 3/4 in Cxf 90 Drop Elbow Lead-free

Product Description

The NIBCO INC BF0185LC is a 3/4 inch copper-by-female-NPT 90-degree drop elbow designed for residential and light commercial plumbing systems. It features a solder cup on the copper end and female NPT threads on the outlet end, allowing a technician to change pipeline direction 90 degrees while transitioning from a soldered copper connection to a threaded connection in a single fitting. Mounting ears are integrated into the body, enabling the fitting to be fastened directly to a wall stud or framing member for a secure, stable installation. The fitting is lead-free, meeting applicable potable-water standards.

This drop elbow is used wherever a copper supply line must make a 90-degree turn and terminate at a threaded stub-out or fixture connection. Common applications include rough-in plumbing for faucets, dishwashers, ice makers, and other fixtures that require a threaded male connection at the point of use. The mounting ear design is especially useful in new construction and remodel work where the stub-out must be positionally fixed before drywall is applied. Licensed plumbers and pipefitters are the primary installers.

Key Features

• Solder cup inlet accepts 3/4 inch copper tubing for standard sweat connection
• Female NPT threaded outlet adapts from copper to threaded piping in one fitting
• Integrated mounting ears allow the fitting to be secured to framing for a rigid stub-out
• Lead-free construction suitable for potable water service
• 90-degree turn changes pipeline direction without additional fittings

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4 inch copper water supply systems requiring a transition to female NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the IPC and applicable local codes. Shut off the water supply and depressurize the line before cutting or soldering. Clean and flux all copper mating surfaces before applying heat; avoid overheating the NPT threads or mounting ears. Thread sealant or PTFE tape should be applied to any male threaded fittings that engage the female NPT outlet before final assembly.

Technical Specifications

• Connection Type: Copper Solder Cup x Female NPT
• Pipe Size: 3/4 inch
• Turn Angle: 90 degrees
• Lead-Free: Yes
• Weight: 2.44 pounds
• Sold As: Each (package quantity of 10 available)

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: BF0185LC
