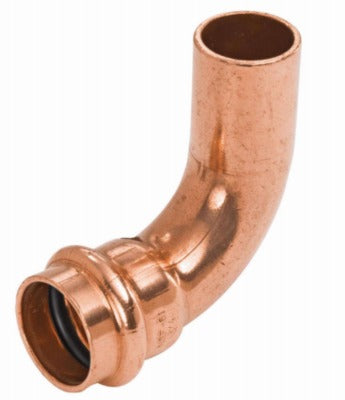

Nibco Inc 9059110PCU 90 Degree Elbow 0.5 Inch Ftg Press

Product Description

The NIBCO INC 9059110PCU is a lead-free 90-degree elbow fitting designed to redirect a pipeline flow at a right angle. It connects using a FTG (fitting-to-fitting) solder end on one side and a press connection on the other, making it suitable for copper piping systems where speed and reliability are required. Sized at 0.5 inches, this elbow is a standard component in residential and light commercial plumbing and hydronic systems. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This fitting is well-suited for use in residential water supply lines, hydronic heating loops, and light commercial plumbing installations where a 90-degree directional change is needed. The press-style connection eliminates the need for open flame during installation, making it appropriate for retrofit work in occupied spaces or where torch use is restricted. The FTG end accepts a copper pipe or fitting end for soldering when required by the system layout.

Key Features

• Lead-free construction meets safe drinking water requirements
• 90-degree angle change for directional pipeline routing
• FTG x Press end configuration supports hybrid connection methods
• 0.5-inch size suits standard residential and light commercial copper piping
• Press connection eliminates open-flame soldering at the press end
• Sold in a package quantity of 10 units

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 0.5-inch copper piping systems utilizing FTG solder and press-style connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off and depressurize the water supply line completely before cutting or joining any fittings. The press end requires a compatible press tool and correct jaw size for 0.5-inch fittings — do not attempt to press with undersized or incompatible tooling. The FTG solder end should be cleaned, fluxed, and joined following standard copper soldering practices.

Technical Specifications

• Size: 0.5 inches
• End Connection: FTG x Press
• Angle: 90 degrees
• Lead-Free: Yes
• Package Quantity: 10 EA
• Weight: 1.29 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: 9059110PCU
