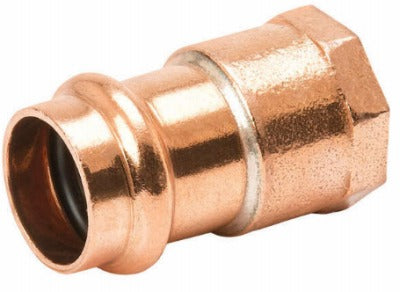

Nibco Inc 9024950PCU 3/4 Inch Press X Fipt Copper Adapter

Product Description

The NIBCO INC 9024950PCU is a 3/4-inch press-by-female-iron-pipe-thread (press x FIPT) adapter fitting designed to transition a press-style copper connection to a standard female threaded connection. This lead-free fitting is used in potable water and hydronic piping systems where a press connection must terminate at or connect to a threaded component such as a valve, sensor, or equipment port. Licensed plumbers and pipefitters install this type of adapter during new construction, retrofit, and repair work where press tooling is already in use on the job.

This adapter is suited for residential and light commercial plumbing applications. It allows a technician to extend a press-fit copper piping run to any standard threaded fitting or component without soldering. The press end accepts standard 3/4-inch press tooling, and the female threaded end accepts a 3/4-inch male NPT fitting. It is sold in a package of 5 units, making it practical for multi-connection jobs.

Key Features

• Lead-free construction, suitable for potable water systems
• 3/4-inch press inlet transitions to a 3/4-inch female iron pipe thread outlet
• Eliminates soldering at the press-to-thread transition point
• Compatible with standard press-fit tooling used on copper piping
• Sold in a package of 5 fittings per unit of measure

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 3/4-inch copper press piping systems that require a transition to female NPT threaded connections.

Installation Notes

Installation requires a calibrated press tool with the appropriate 3/4-inch jaw set. Shut off and depressurize the water supply and verify the pipe is dry before pressing. All work should comply with applicable local plumbing codes and IPC standards. Do not use pipe thread sealant on the press end of the fitting.

Technical Specifications

• Connection Type: Press x Female Iron Pipe Thread (FIPT)
• Size: 3/4 inches
• Lead-Free: Yes
• Package Quantity: 5 per package
• Weight: 1.03 pounds

Standard Information

• Brand: NIBCO INC
• Manufacturer Part Number: 9024950PCU
