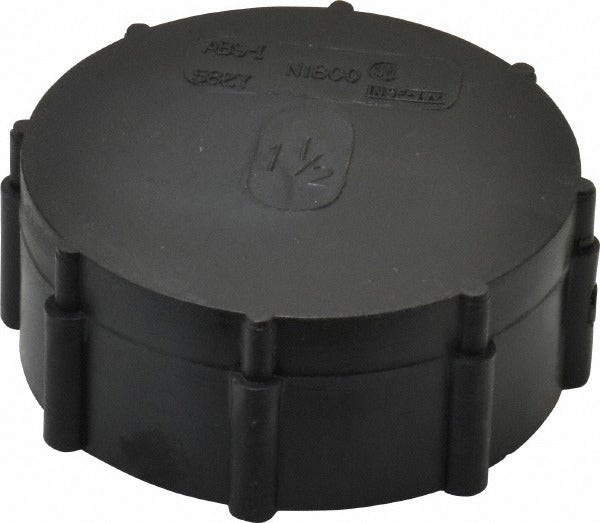

Nibco I170100 Dwv End Cap 1-1/2 Inch Fipt Abs

Product Description

The NIBCO I170100 is a drain, waste, and vent (DWV) end cap fitting manufactured from acrylonitrile butadiene styrene (ABS) plastic. It accepts a 1-1/2 inch female iron pipe thread (FIPT) connection and is used to terminate an open pipe end in a DWV system. The fitting handles a working temperature range of -40 degrees F to 180 degrees F, making it suitable for standard indoor drain and waste applications. Licensed plumbers and pipefitters install this fitting when capping unused branch outlets or sealing the end of a DWV run during rough-in or system modification.

This end cap is designed for residential and light commercial DWV piping systems. It is used wherever a threaded ABS pipe end requires a permanent or temporary seal — common applications include capping branch tees during phased construction, pressure-testing stub-outs, or closing off decommissioned drain lines. The FIPT connection threads directly onto a male-threaded ABS or compatible pipe end. This fitting is sold individually but must be ordered in multiples of 5.

Key Features

• ABS construction rated for DWV service — lightweight, corrosion-resistant, and compatible with standard solvent-cement or threaded ABS systems
• 1-1/2 inch FIPT (female iron pipe thread) end connection for quick threaded installation
• Wide temperature range: -40 degrees F to 180 degrees F working temperature
• Manufactured under ISO 9001:2008 quality management standards
• Low profile, lightweight at 0.06 pounds — minimal load on piping system

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch threaded ABS DWV piping systems in residential and light commercial drain, waste, and vent applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off water supply and ensure the system is depressurized and drained before threading this cap onto an existing pipe end. Apply thread sealant or PTFE tape appropriate for plastic fittings — do not overtighten, as ABS threads can crack under excessive torque. Verify the completed assembly for leaks before closing walls or concealing the installation.
