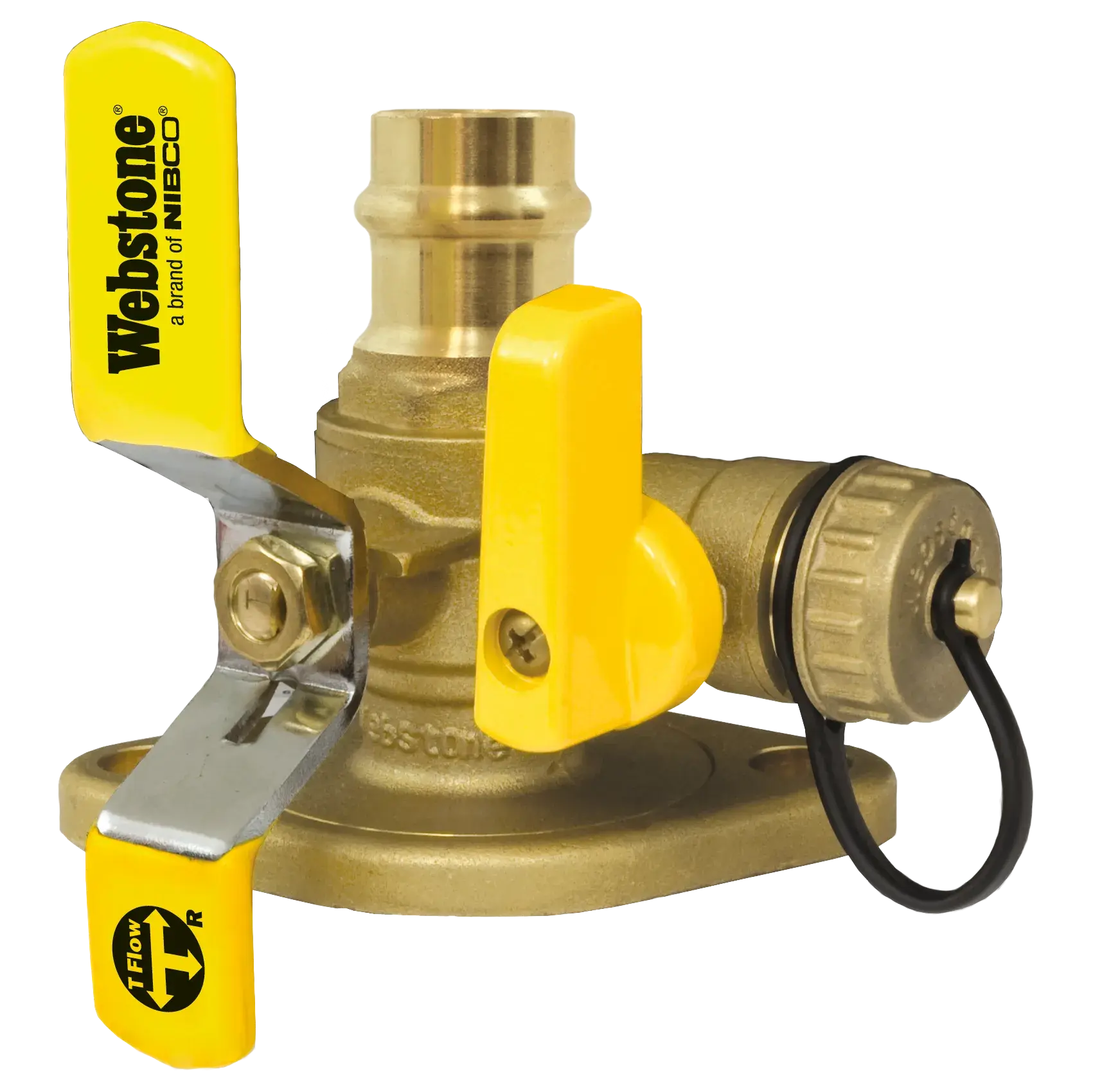

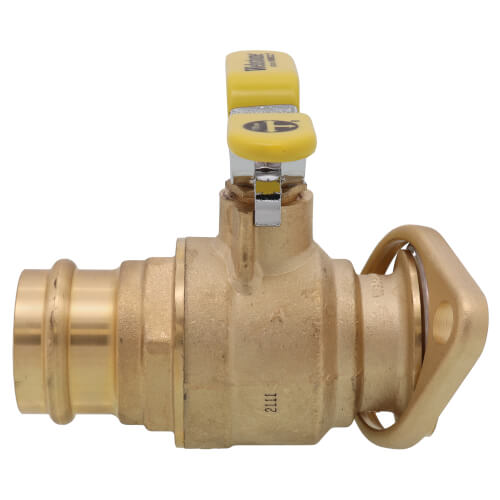

Nibco H-81417WHV Isolator w/ Drain 2 inches Press High Velocity Full Port Brass Uni-Flange

Product Description

The NIBCO H-81417WHV is a 2" press high-velocity full port brass uni-flange isolator with a multi-function drain and rotating flange. The 360° flange rotation allows adjustments to any degree necessary for installation. The multi-function drain makes it the only valve that drains from both sides of the pump. It easily isolates the pump for replacement.

• Press Connection
• 2" Connection
• Brass material
• Drain & Rotating Flange

Product Highlights

This isolator valve combines multiple components into a single forged brass body that saves time, labor, and space. It prevents electrolysis and eliminates galvanic corrosion.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-81417WHV
• Country of Origin: Import

Technical Specifications

• Features: Drain & Rotating Flange
• Size: 2"
• Connection Size: 2"
• Connection Type: Press
• Material: Brass
• Lead Free: Yes
• Type: High Velocity
• Ball Material: Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: Press x Detachable HV Rotating Flanged
• Inlet to Outlet Length: 5-13/16 in
• Media: Water
• Nominal Size: 2 in
• Orifice Size: 1-15/16 in
• Port Type: Full
• Pressure Rating: 250 psi
• Series: 8141
• Softgoods Material: PTFE/EPDM/PVC
• Temperature Rating: 250 deg F
• Top to Inlet Center: 3-9/16 in
• Trim Material: PTFE Seat and Brass Stem
• Part Number: H-81417WHV
• Manufacturer: Nibco
• Description: 2 PRS LF ISOLATOR W/ DRAIN HV
• Lead Free Status / RoHS Status: Lead free / RoHS Compliant
• Product Condition: Active
