Product Description

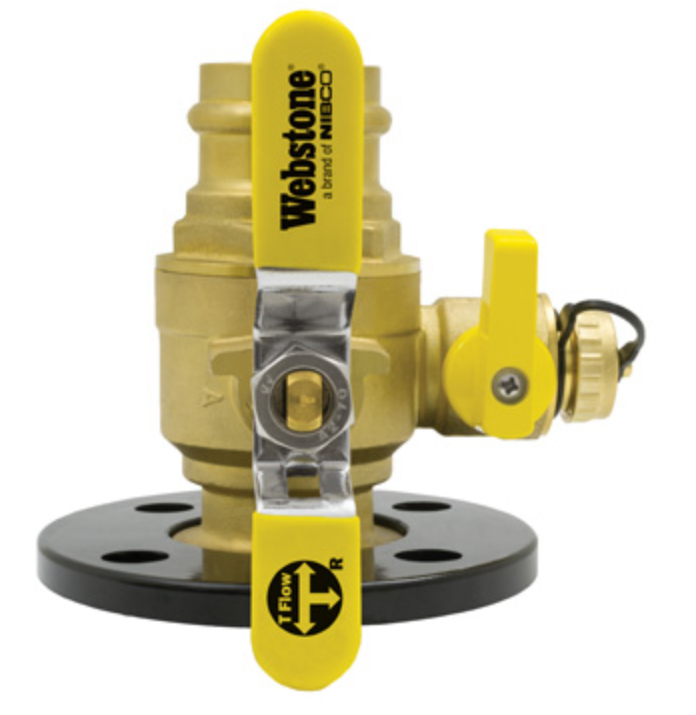

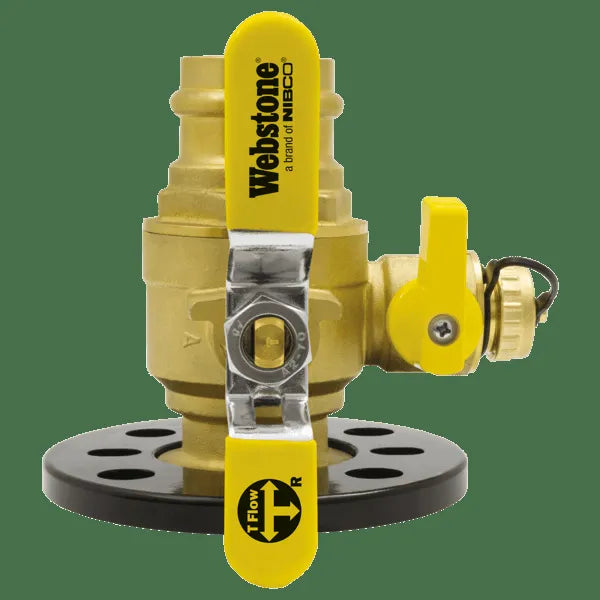

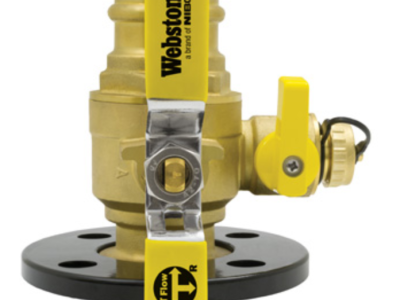

The NIBCO H-81417HV-RF475 is a two-inch ball valve designed for high performance. This full port forged brass valve features a detachable rotating flange, which allows for easy maintenance and installation. The valve includes a multi-function hi-flow hose drain with a cap and tether, enhancing its functionality. Adjustable packing glands make it easy to tighten or loosen the valve as needed, ensuring a secure operation.
- Detachable rotating flange for easy maintenance.
- Multi-function hi-flow hose drain included.
- Adjustable packing glands for optimal performance.
Product Highlights
Ideal for standard and high-velocity pump systems. This valve is suitable for a variety of industrial applications, but it is not intended for potable water use.
Product Information
Standard Information
-
Brand: NIBCO
-
MPN: H-81417HV-RF475
Technical Specifications
-
Type: Ball Valve
-
Valve Size: 2 in
-
Connection Type: Press x Rotating Flange
-
Valve Operator: Lever Handle
-
Maximum Operating Pressure: 250 psi
-
Flanged Body Material: Brass
-
End Cap Material: Brass
-
Seat Material: PTFE
-
Ball Material: Brass HCP
-
Stem Material: Brass
-
Stem Seal Material: PTFE
-
Packing Gland Material: Brass
-
Lever Handle Material: Steel CP
-
O-Ring Material: EPDM
-
Handle Nut Material: Stainless Steel
-
Handle Jacket Material: Vinyl
-
Rotating Flange Material: Ductile Iron
-
Rotating Flange Ring Material: Stainless Steel
-
Flange Bolts & Nuts Material: Steel ZP
-
Drain Seats Material: PTFE
-
Drain Ball Material: Brass CP
-
Drain Stem Material: Brass
-
Drain End Cap Material: Brass
-
Drain Handle Material: Epoxy Coated Aluminium
-
Drain Seal Material: PTFE
-
Drain Packing Gland Material: PTFE
-
Drain Screw Material: Stainless Steel
-
Drain Cap Material: Brass
-
Drain Strap Material: PVC
-
Inside Diameter (A): 2 in
-
Length (B): 5 7/8 in
-
Height (C): 3.50 in
-
Handle Length (D): 3 3/8 in
-
Flange Thickness (E): 7/16 in
-
Hole Diameter (F): 9/16 in
-
Flange Inside Diameter (G): 2
-
Flange Outside Diameter (I): 6 1/8 in
-
Hole Length (K): 13/16 in
-
Weight: 6.600 lb
-
Potable: Non-Potable
-
Drain: Yes
-
Approximate Height: 4.75 inches
-
Approximate Length: 5.25 inches
-
Approximate Width: 5.875 inches
