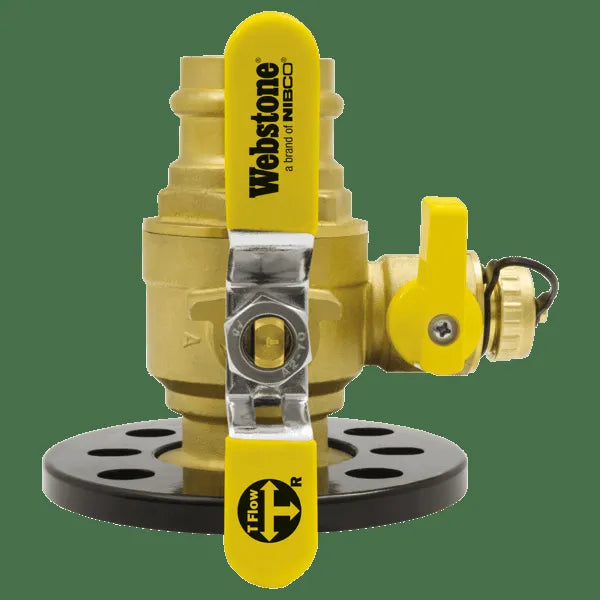

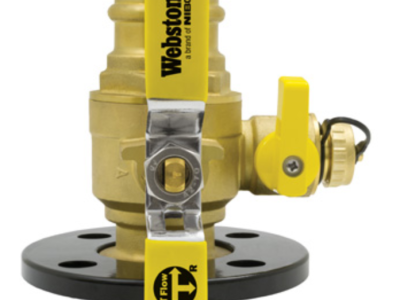

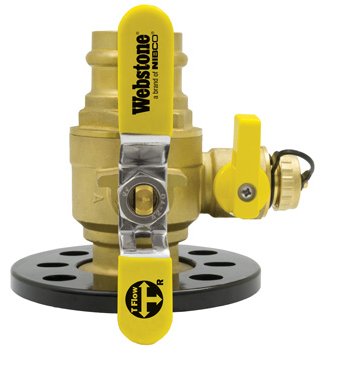

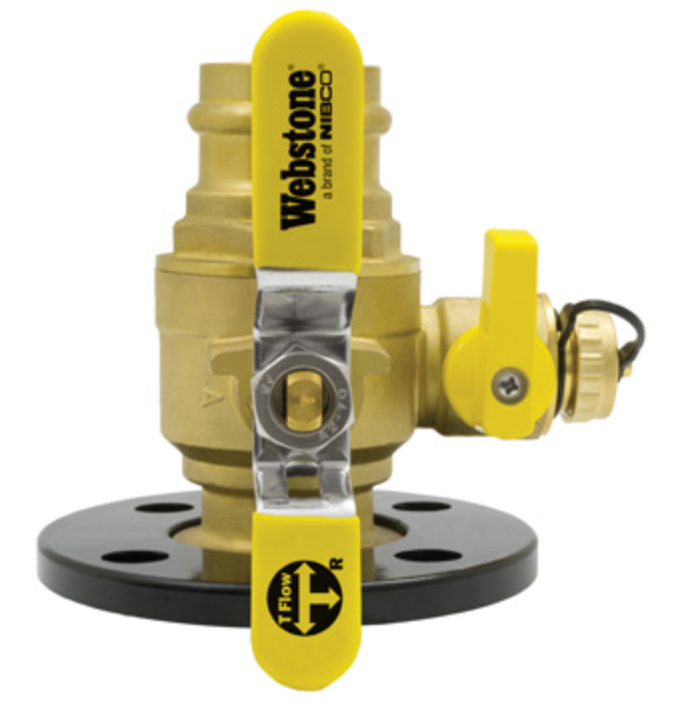

NIBCO H-81417HV Ball Valve, 2 in, Press x Rotating Flange

Product Description

The NIBCO H-81417HV is a ball valve designed for efficient flow control. This two-inch valve is made from forged brass and features a uni-flange design with a detachable rotating flange. It is equipped with a multi-function drain that enhances versatility. This valve includes adjustable packing glands, nuts, and bolts for easy maintenance.

• Full port design for maximum flow.
• Multi-function hose drain included.
• Adjustable packing glands for customizable performance.

Product Highlights

This product is ideal for various industrial applications where non-potable water flow control is required.

Product Information

Standard Information

• Product Type: Ball Valve
• MPN: H-81417HV

Technical Specifications

• Valve Size: 2 in
• Connection Type: Press x Rotating Flange
• Valve Operator: Lever Handle
• Maximum Operating Pressure: 250 psi
• Body Material: Brass
• Seat Material: PTFE
• Ball Material: Brass HCP
• Stem Seal Material: PTFE
