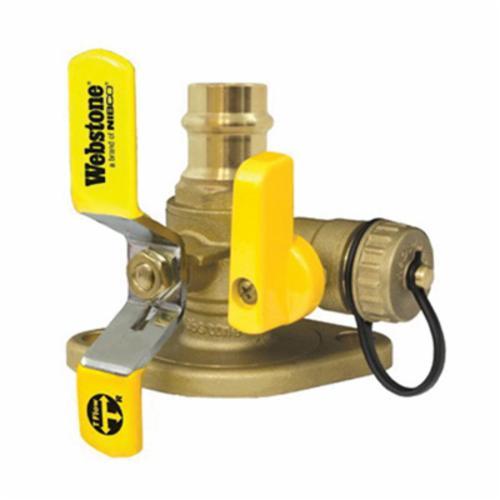

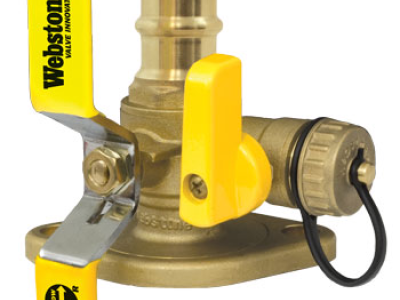

NIBCO H-81413HV Webstone Isolator Uni-Flange Ball Valve

Product Description

The NIBCO H-81413HV Webstone Isolator Uni-Flange Ball Valve is a brass ball valve that features a three-fourth inch press connection and is engineered for non-potable water systems. This valve includes a rotating flange secured by a snap ring for easy installation. It has a high-flow hose drain with a cap and tether for efficient draining. Additionally, the adjustable packing nut offers flexibility in operation.

• Features a rotating flange with snap ring.
• Includes high-flow hose drain with cap and tether.
• Designed for non-potable water systems.

Product Highlights

The NIBCO H-81413HV provides reliable flow control and is suited for both standard and high-velocity circulators.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-81413HV

Technical Specifications

• Series: 8141 Series
• Potable: Non-Potable
• Ball Valve: Yes
• Connection Type: Flanged
• Pipe Size: 3/4 inches
• Opening Size: 3/4 inches
• Drain: Yes
• Operator Type: Handle
• Pressure Rating: 250 lbf/sq-in
• Temperature Rating: 250 deg F
• Material: Brass
• Handle Material: Steel
• Packing Material: Brass
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Trim Material: Brass
• Approximate Height: 2.50 inches
• Approximate Length: 2.0 inches
• Approximate Weight: 1.25 pounds
• Approximate Width: 3.69 inches
• Dimensions: 3-11/16 in L
