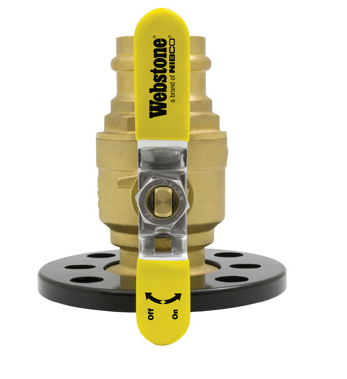

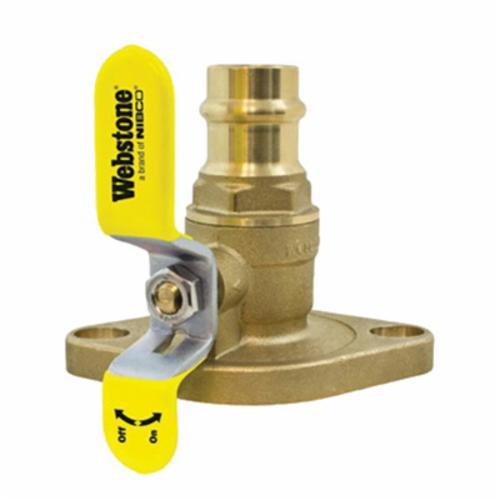

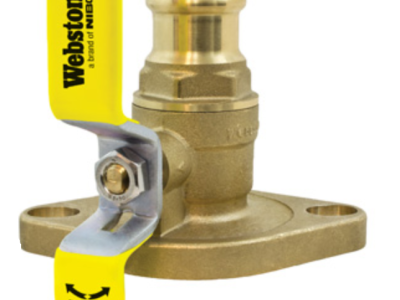

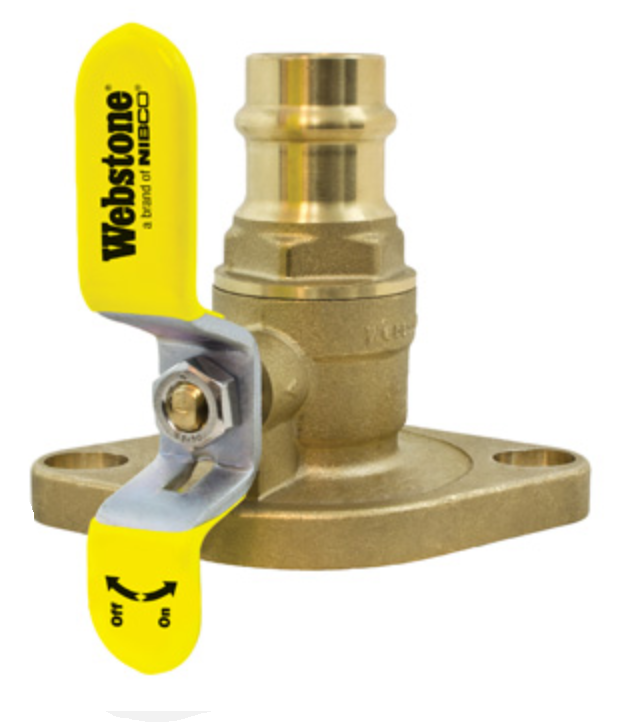

NIBCO H-81407HV 2-inch Forged Brass Uni-Flange Ball Valve

Product Description

The NIBCO H-81407HV is a 2-inch ball valve with a forged brass body and a detachable rotating flange. It is suitable for installation with standard and high-velocity pumps. The valve features a steel lever handle and an adjustable packing gland for maintenance.

• Detachable rotating flange for simple installation
• Adjustable packing gland enhances longevity
• Not for potable water applications

Product Highlights

This valve is engineered for reliable performance in various applications, making it a valuable component in plumbing systems.

Product Information

Standard Information

• MPN: H-81407HV
• Valve Type: Ball Valve

Technical Specifications

• Nominal Size: 2 inches
• Connection Type: Press x Rotating Flange
• Valve Operator: Lever Handle
• Maximum Operating Pressure: 250 psi
• Flanged Body Material: Brass
• Seat Material: PTFE
• Ball Material: Brass HCP
• Height: 3.50 inches
• Length: 5 7/8 inches
• Weight: 5.50 pounds
• Temperature Rating: 250 degrees F
