NIBCO H-81406HV Full Port Forged Brass Uni-Flange Ball Valve

Product Description

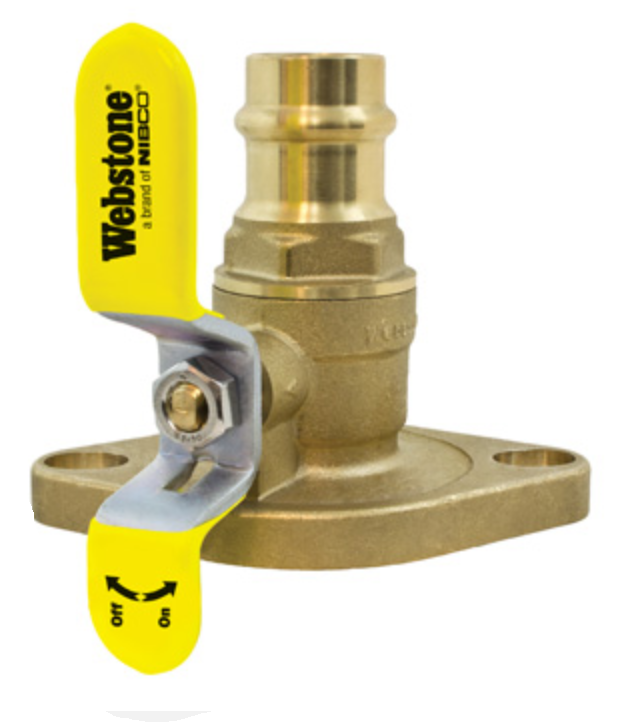

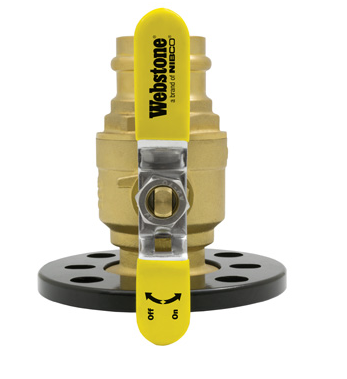

The NIBCO H-81406HV is a forged brass ball valve designed for optimal flow and ease of installation. It features a detachable rotating flange that ensures secure positioning during installation. The valve includes essential components such as an adjustable packing gland, nuts, and bolts for maintenance.

• Full port design allows for maximum flow.
• Forged brass construction ensures longevity.
• Rotating flange provides simplified positioning.

Product Highlights

This ball valve is ideal for various applications where durability and reliable performance are critical.

Product Information

Standard Information

• Brand: NIBCO
• Type: Ball Valve

Technical Specifications

• MPN: H-81406HV
• Valve Size: 1 1/2 inches
• Connection Type: Press x Rotating Flange
• Maximum Operating Pressure: 250 psi
• Flanged Body Material: Brass
• Seat Material: PTFE
• Ball Material: Brass HCP
• Approximate Height: 3 3/8 inches
• Approximate Length: 5.00 inches
• Approximate Weight: 2.95 pounds
