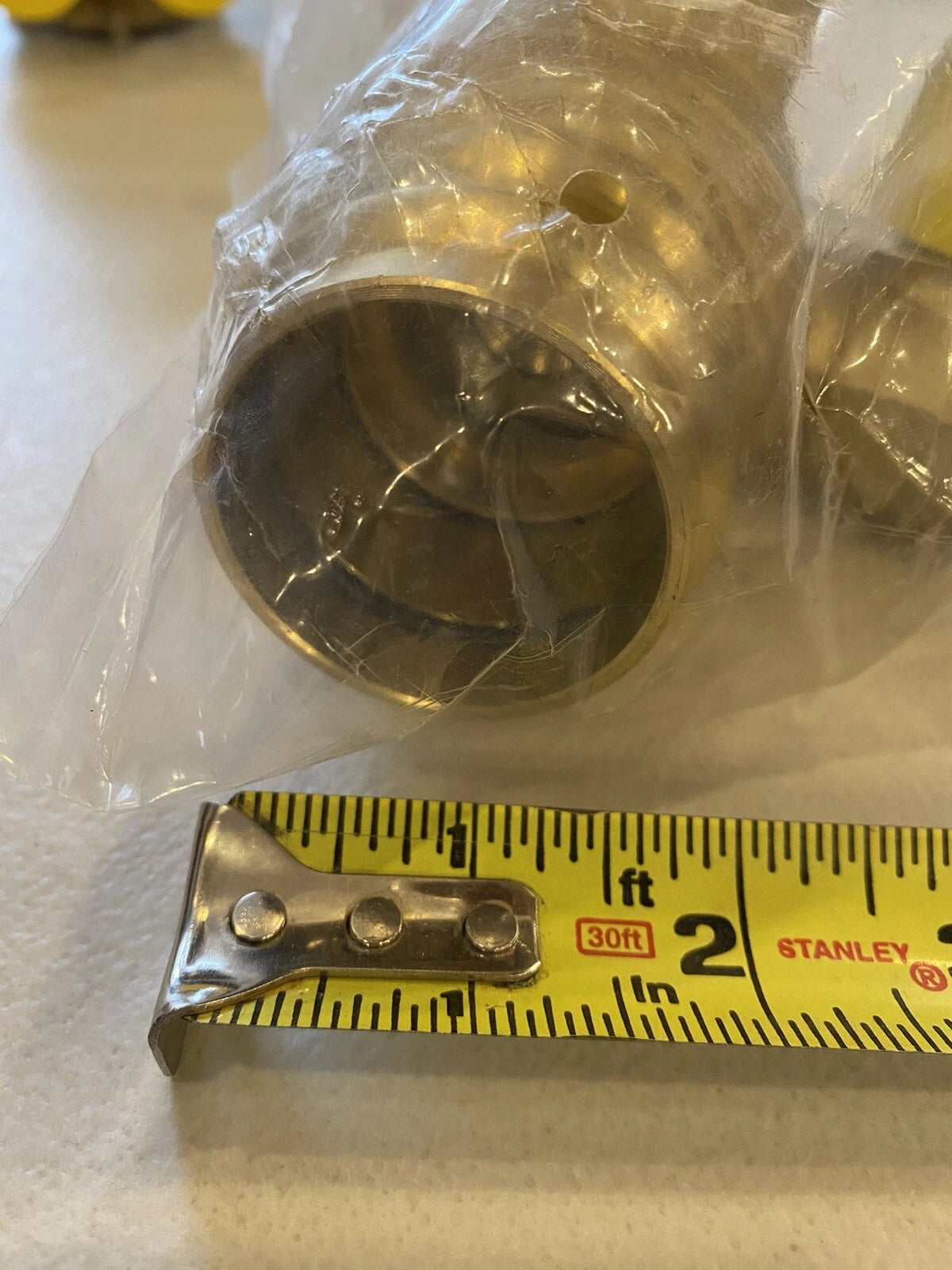

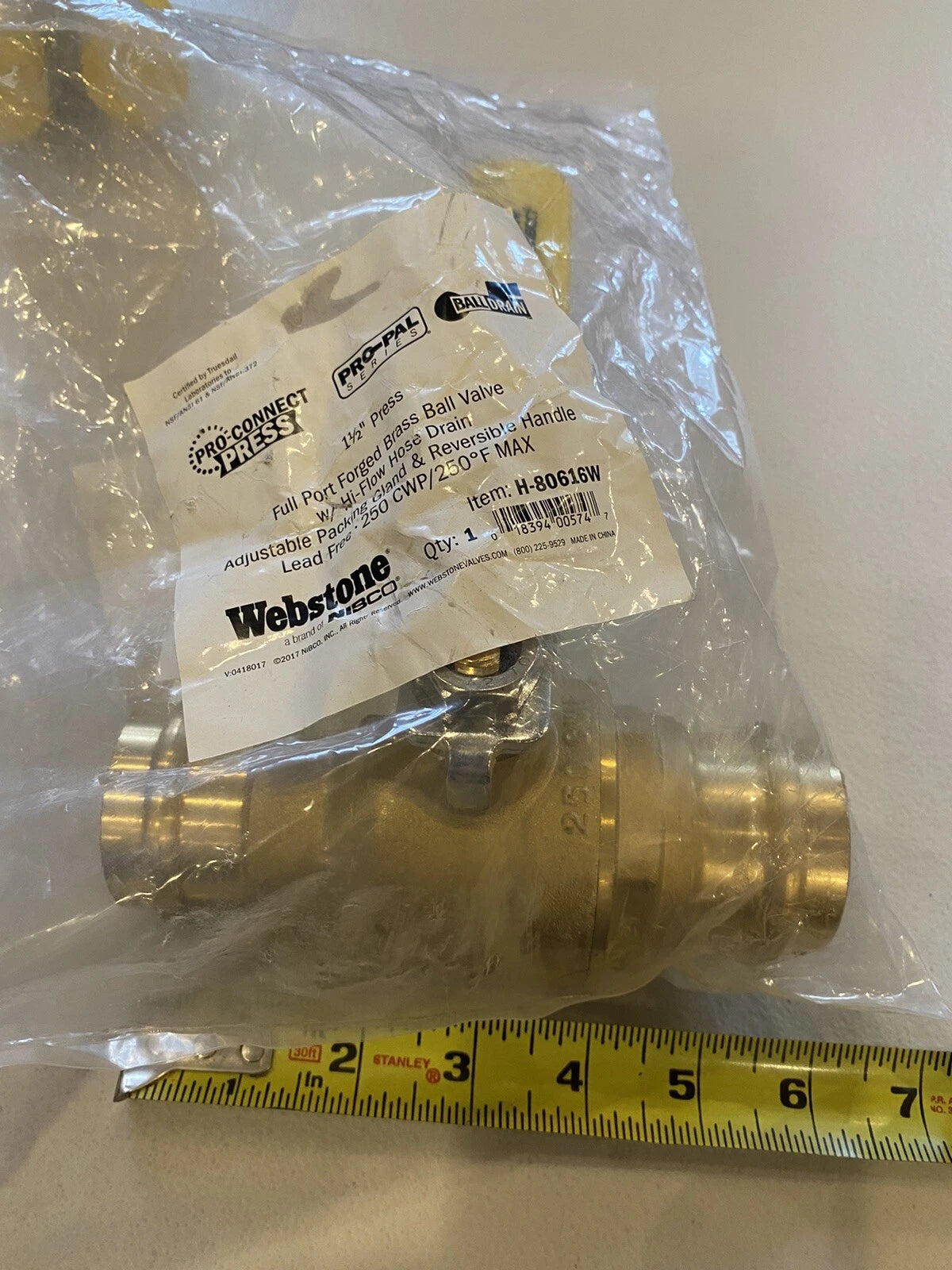

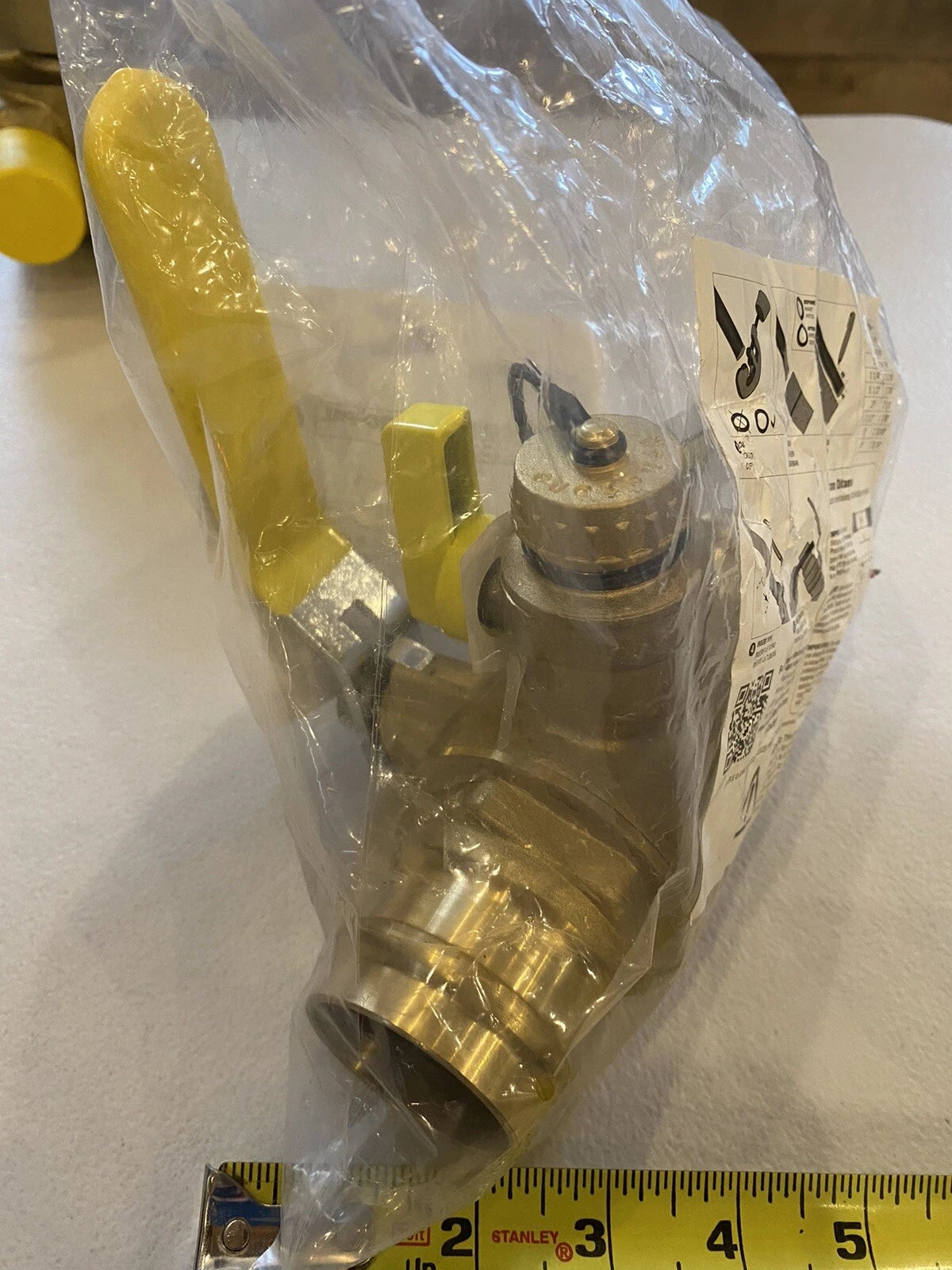

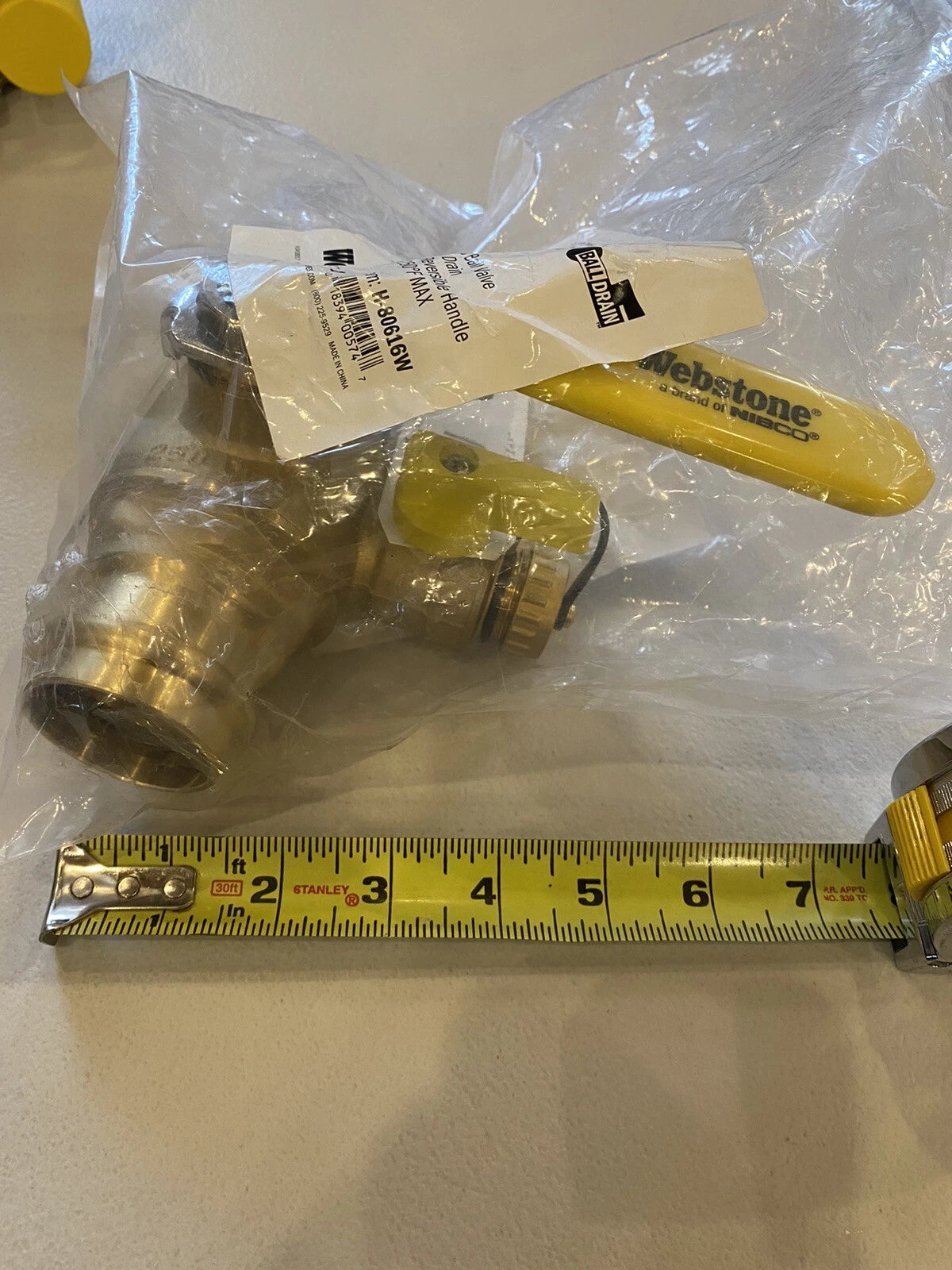

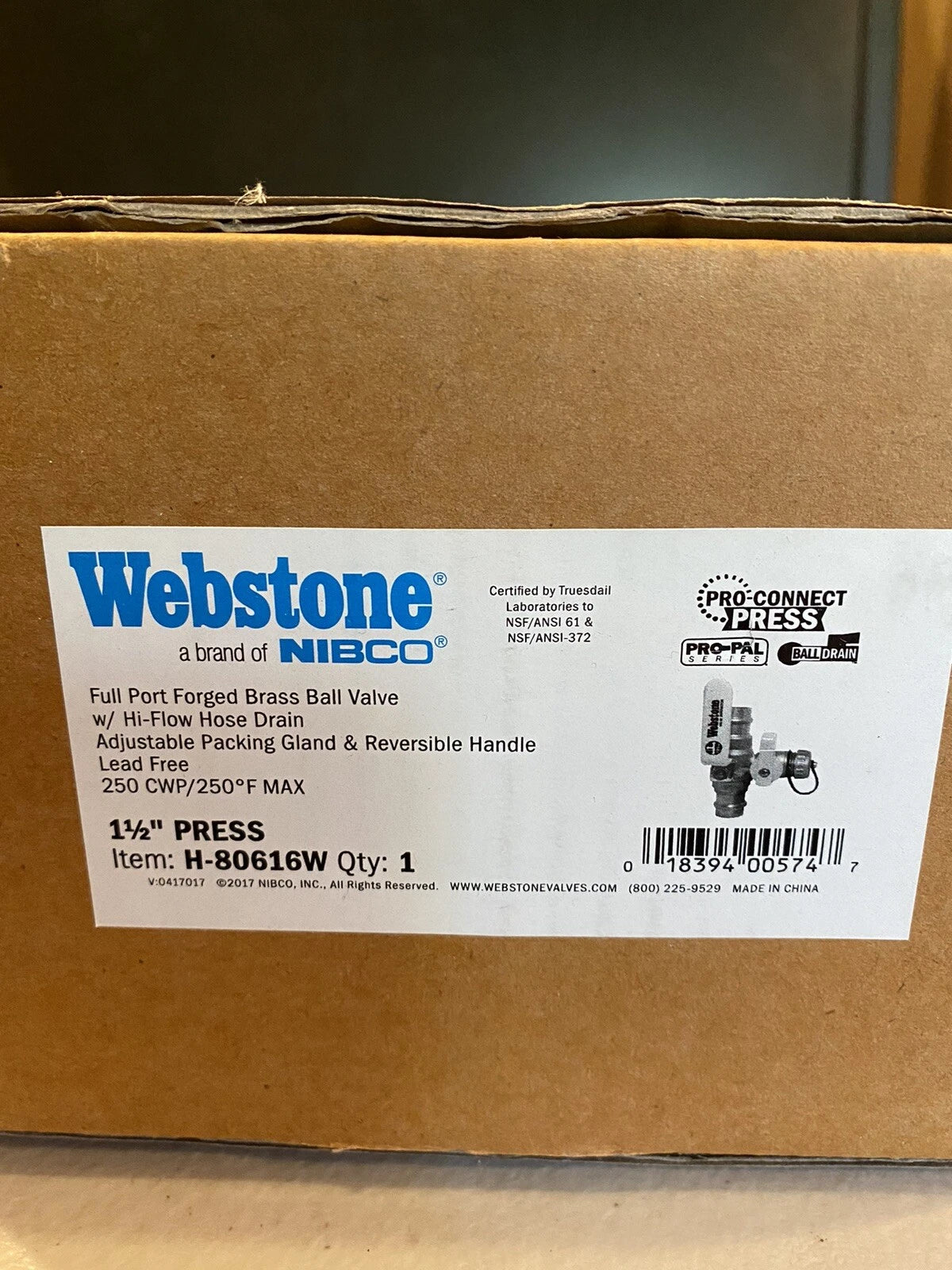

NIBCO H-80616W Press x Press Full Port Ball Valve with Drain

Product Description

The NIBCO H-80616W is a lead-free, two-piece ball valve with a full port design. This valve features press connections on both ends that measure one and a half inches. It includes a high-flow hose thread drain, equipped with a cap and tether for system maintenance. The construction is from forged brass, ensuring durability in plumbing systems.

• Lead-free brass construction
• Full port design for consistent flow
• High-flow hose drain included

Product Highlights

This ball valve is suitable for use with water, oil, and glycol mixtures in both residential and commercial plumbing and heating systems.

Product Information

Standard Information

• Manufacturer Part Number: H-80616W
• Nominal Size: 1-1/2 inches x 1-1/2 inches

Technical Specifications

• End Connection 1: Press
• End Connection 2: Press
• Body Material: Forged Brass
• Valve Type: Ball Valve
• Port Type: Full
• Pressure Rating: 250 psi CWP
• Valve Operation: Manual
• Valve Seat Material: PTFE
• Maximum Temperature: 250°F
