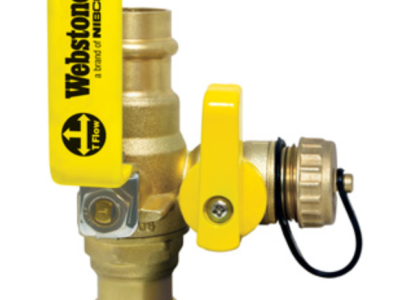

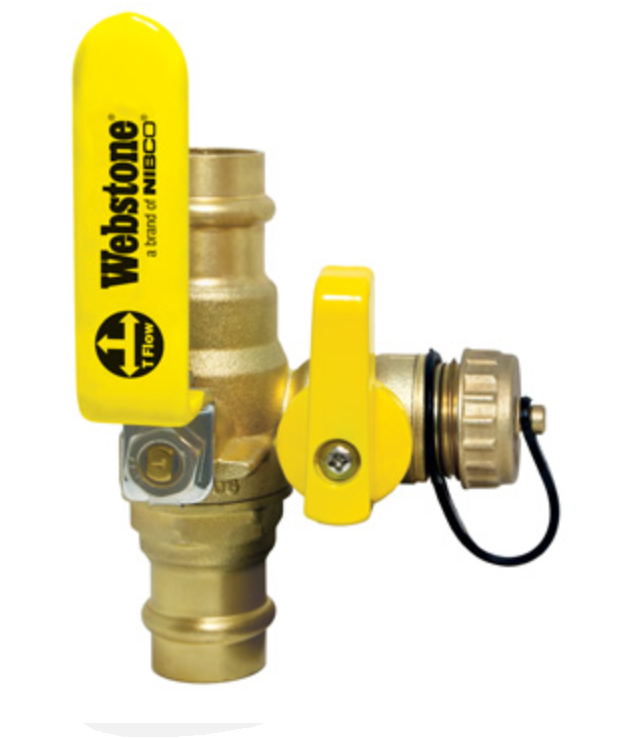

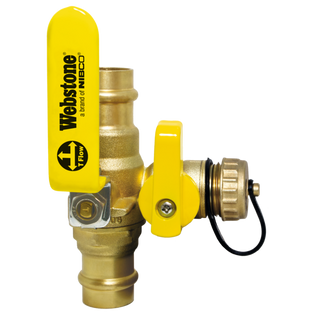

NIBCO H-80615W Webstone Pro-Pal 1-1/4 Inch Press x Press Full Port Ball Valve with Drain

Product Description

The NIBCO H-80615W Webstone Pro-Pal is a lead-free brass ball valve suitable for various plumbing, heating, and gas applications. This full port ball valve features press connections on both ends for 1-1/4 inch pipes.

• Constructed from lead-free forged brass.
• Includes a high-flow hose thread drain with cap and tether.
• Equipped with adjustable packing glands and reversible handle.

Product Highlights

This valve provides a robust option for both residential and commercial use, ensuring reliable operation in diverse environments.

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: H-80615W

Technical Specifications

• Material: Forged Brass
• Lead Free: Yes
• P1 Size: 1-1/4 inches
• P1 Connection: Press
• P2 Size: 1-1/4 inches
• P2 Connection: Press
• Nominal Size: 1-1/4 Inch x 1-1/4 Inch
• End Connection: Press x Press
• Port Type: Full
• Bore: Full Port
• Pressure Rating: 250 PSI CWP
• Maximum Temperature: 250 °F
• Body Style: 2 piece
• Actuation Type: Reversible Handle
• Valve Type: Ball Valve
• Handle Material: Chrome Plated Steel
• Inclusions/Features: Adjustable Packing Gland, Hi-Flow Hose Drain
• Applicable Standard: NSF/ ANSI 14/61/372
• ISO: ISO 9001
• Recommended Valve Application: Gas, Oil, Water
• Approximate Height: 3.50 inches
• Approximate Length: 2.0 inches
• Approximate Width: 5.50 inches
• Approximate Weight: 1.50 pounds
