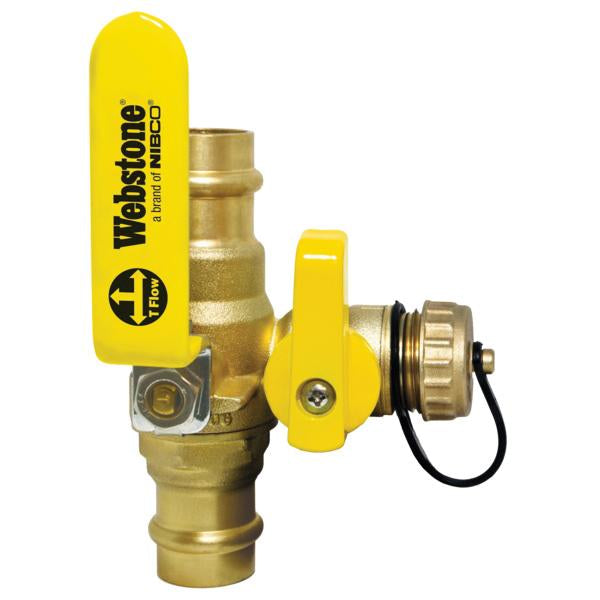

Nibco h-80615 Ball Valve 1-1/4 in Press Brass 250 Psi

Product Description

The NIBCO h-80615 is a full-port brass ball valve designed for press-connection installations in commercial and residential plumbing systems. Part of the H-x061 Series, it features a brass body, brass ball, and PTFE seat and seal, delivering reliable shutoff performance rated to 250 psi and 250 degrees F. The valve includes an integrated hi-flow hose drain and a reversible aluminum handle, making it well-suited for systems where periodic draining or isolation is required. Licensed plumbers and pipefitters install this valve where quick quarter-turn shutoff and convenient drainage access are priorities.

The h-80615 is used in residential and light commercial hydronic, potable water, and general plumbing piping systems requiring a 1-1/4 inch press-end connection. Its full-port design minimizes flow restriction, and the reversible handle accommodates tight or awkward installations where handle orientation must be adjusted to clear obstructions. The hi-flow hose drain port adds utility for system servicing, draining, or sampling without requiring a separate valve downstream.

Key Features

• Full-port ball design for unrestricted flow at 1-1/4 inch nominal pipe size
• Press connection ends for fast, flame-free installation
250 psi pressure rating and 250 degrees F temperature rating
• Integrated hi-flow hose drain for convenient system servicing
• Reversible aluminum handle adapts to confined installation spaces
• Brass body, ball, stem, and packing with PTFE seat and seal for durability and corrosion resistance
• EPDM softgoods for compatibility with water service applications

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-1/4 inch press-end copper or compatible piping systems in plumbing and hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber following applicable local plumbing codes. Press connections require a calibrated press tool with the correct jaw set for the pipe diameter and fitting series. Shut off the water supply and depressurize the system before servicing or replacing the valve. Do not apply open flame near the valve body or softgoods during or after installation.

Technical Specifications

• Series: H-x061 Series
• Nominal Size: 1-1/4 inches
• Connection Type: Press
• Port Type: Full
• Pressure Rating: 250 psi
• Temperature Rating: 250 degrees F
• Inlet to Outlet Length: 5.5 inches
• Top to Inlet Center: 3 inches
• Overall Dimensions: 5.6 inches L x 3.3 inches W x 3.7 inches H
• Number of Handles: 1
• Operator Type: Reversible Handle
• Body Material: Brass
• Ball Material: Brass
• Stem Material: Brass
• Packing Material: Brass
• Handle Material: Aluminum
• Seat Material: PTFE
• Seal Material: PTFE
• Softgoods Material: EPDM
• Origin: Import

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: h-80615
