NIBCO H-80614W 1-inch Press Full Port Ball Valve with Drain

Product Description

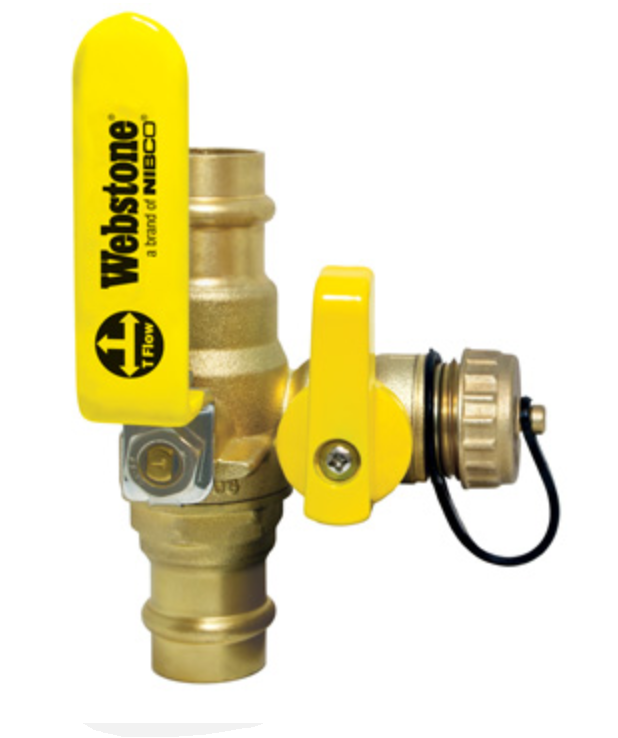

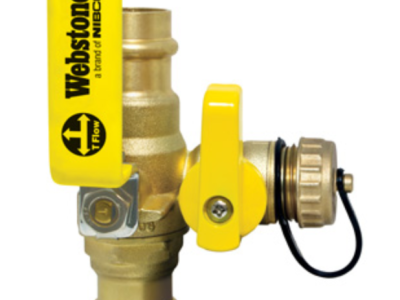

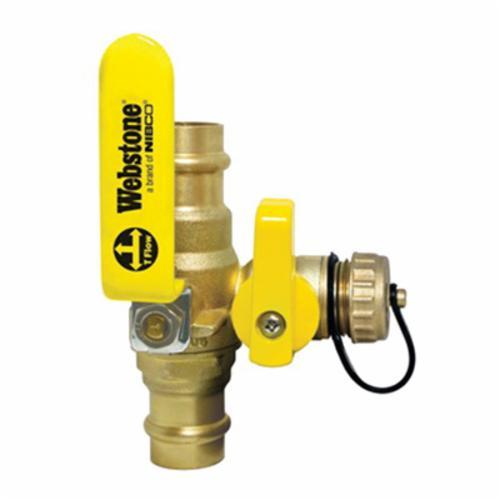

The NIBCO H-80614W is a 1-inch full port ball valve made for press connections. This valve is constructed from lead-free brass and includes a PTFE seat, brass stem, and EPDM seal. It features a high-flow hose drain with a cap and tether which makes draining easier. The valve incorporates an adjustable packing gland for reliable sealing. The reversible handle enhances versatility, making this valve suitable for gas, oil, and water applications.

• High-flow hose drain for easy draining
• Adjustable packing gland for improved sealing
• Reversible handle for added versatility

Product Highlights

The NIBCO H-80614W ball valve is ideal for various fluid applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-80614W

Technical Specifications

• Nominal Size: 1 inches
• End Connection 1: Press
• End Connection 2: Press
• Pressure Rating: 250 lb/sq-in CWP
• WOG Pressure Rating: 250 PSIG
• Body Material: Brass
• Seat Material: PTFE
• Stem Material: Brass
• Seal Material: EPDM
• Handle Material: Chrome Plated Steel
• Valve Type: Ball Valve
• Port Type: Full Port
• Lead Free: Yes
• Maximum Temperature: 250 degrees F
• Approvals: NSF, ANSI
• Valve Body Style: 2 piece
