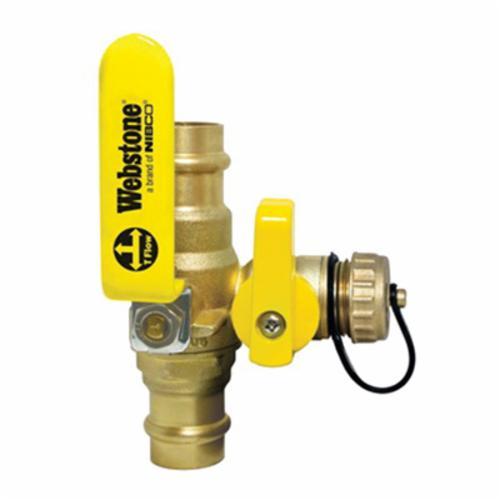

NIBCO H-80613W Ball Drain Valve

Product Description

The NIBCO H-80613W is a ball valve designed for isolating and draining sections of a piped system. This valve has a forged brass body and features a full port design. It uses a press connection for easy installation and includes an adjustable packing gland for longevity. The valve is equipped with a PTFE seat and EPDM seals, ensuring leak-free performance. It is also suitable for use with water, oil, and glycol mixtures.

• Lever operator with HCP steel handle
• Maximum temperature rating of 250 degrees F
• Compliant with lead-free standards

Product Highlights

The NIBCO H-80613W provides reliable operation in a range of applications. Its durable construction and compliant materials make it a safe choice for various media.

Product Information

Standard Information

• Manufacturer Part Number: H-80613W
• Valve Type: Ball Valve

Technical Specifications

• Connection Type: Press
• Nominal Size: 3/4 inches
• Pressure Rating: 600 psi CWP
• Body Material: Forged Brass
• Seat Material: PTFE
• Stem Material: Brass
• Seal Material: EPDM
• Trim Material: Brass/PTFE
• Handle Material: Chrome Plated Steel
• Temperature Rating: 250 degrees F
• Valve Port Opening: Full Port
• Valve Stem: Blowout-proof
• Lead Law Compliant: Yes
• Media: Glycol Mixture/Oil/Water
• Actuator Type: Lever Handle
• Ball Material: HCP Brass
• Port Type: Full
• Inlet to Outlet Length: 4.44 inches
• Top to Inlet Center: 2.13 inches
• Orifice Size: 1/2 inches
• ANSI: ANSI 61, ANSI 372
• ISO: ISO 9001
• NSF Certified: Yes
• NSF: NSF 61, NSF 372
