Nibco H-74613 H-7X61 Boiler Vent Valve, 3/4 in, Threaded

Product Description

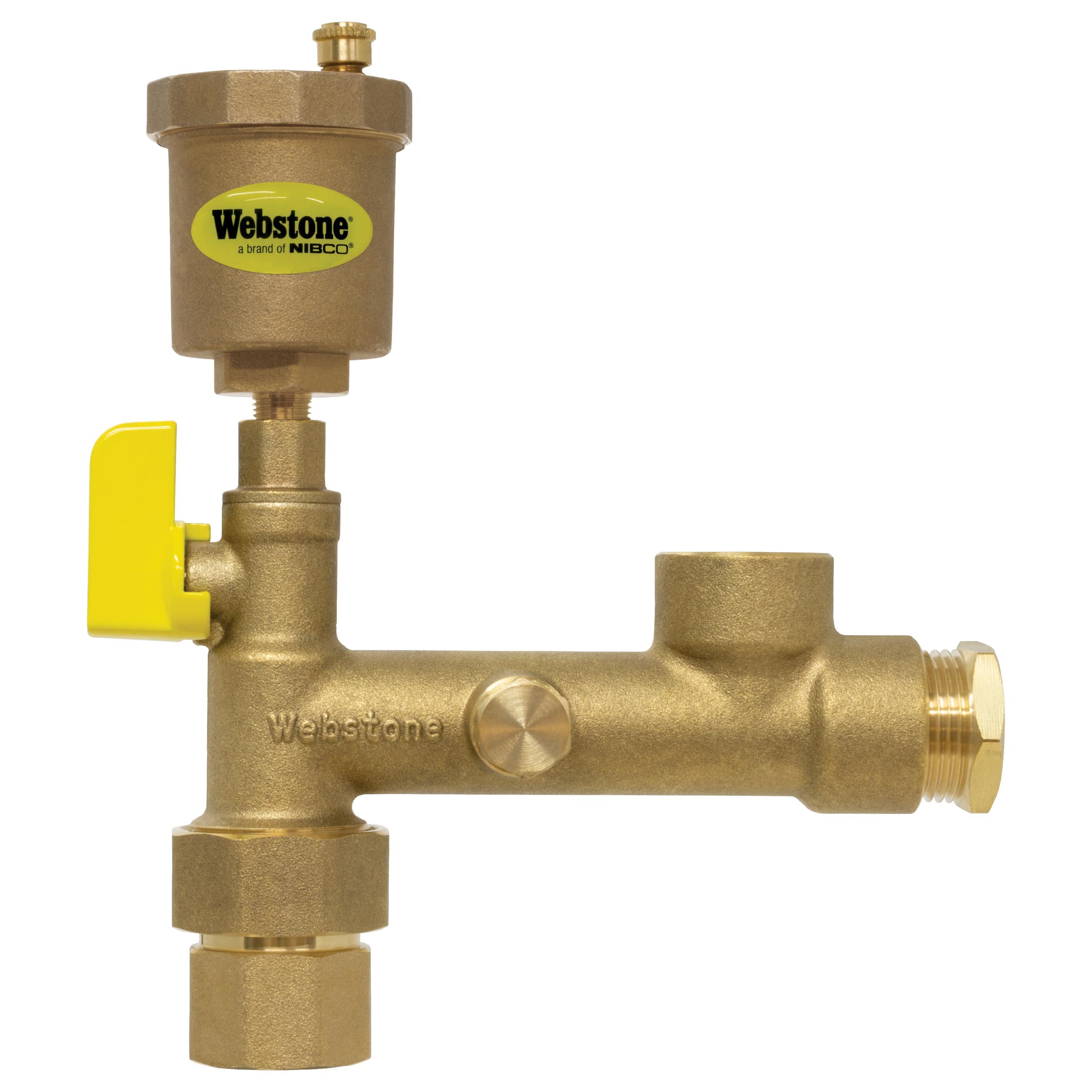

The NIBCO H-74613 Boiler Vent Valve, part of the H-7X61 series, features a full port forged brass ball valve with an auto air vent. Designed for gas and water media, this valve has a 3/4 in FIP pressure relief valve port and 1/4 NPT gauge ports. It also includes a 3/4 FIP low water cutoff port and a close nipple.

• Union connection to boiler for easier installation and flexible positioning
• Includes an automatic air vent to release trapped air from the system
• Integrated ball valve isolates vent for service without obstructing the PRV

Product Highlights

The valve is actuated by a blowout proof stem with double O-ring stem seals. It replaces 10 components and eliminates 9 leak paths.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-74613
• Country of Origin: China

Technical Specifications

• Body Material: Brass
• End Style: Threaded
• Media: Gas/Water
• Nominal Size: 3/4 in
• Port Type: Full
• Pressure Rating: 145 psi
• Series: H-7X61
• Temperature Rating: 200 deg F
• Manufacturer: Nibco Inc.
• Manufacturer Part Number: H-74613
• UPC: 018394025127
• End Connection: Threaded
• Valve End Connection Type: FIP
• Type of Valve: Ball Valve - Comibination
