NIBCO H-58654 Purge Tee Ball Valve

Product Description

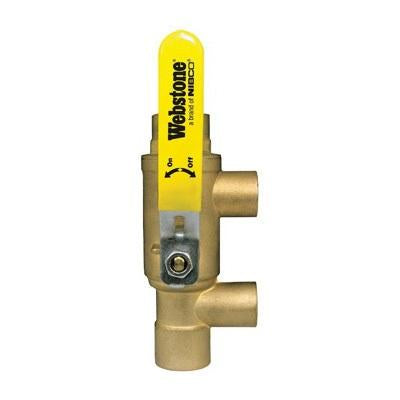

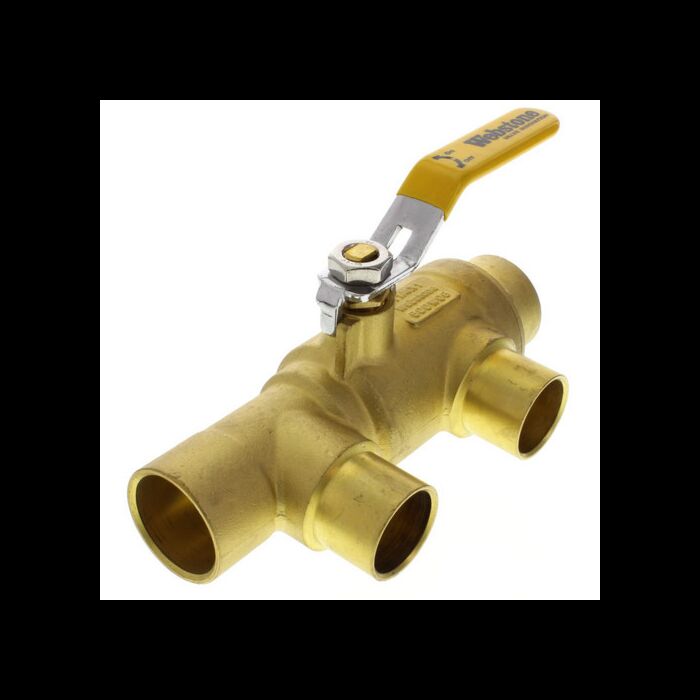

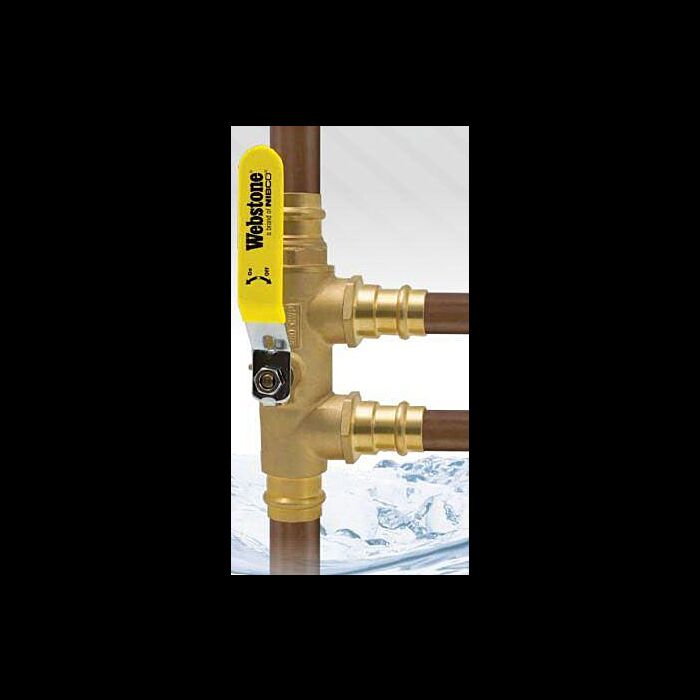

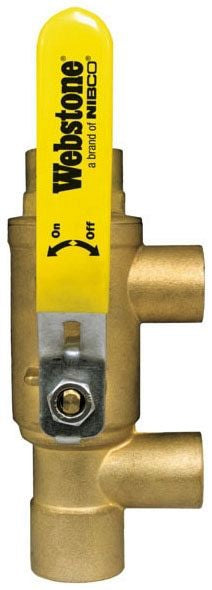

The NIBCO H-58654 is a purge tee ball valve suitable for residential and commercial heating systems. This assembly features a ball valve installed between a pair of tees. This design simplifies the purging of individual loops in a hydronic system. It includes an adjustable packing gland and a reversible handle for easy operation. The valve supports multiple media types such as water, oil, and glycol mixtures.

• Designed for easy purging of hydronic systems.
• Constructed from durable forged brass.
• Features a full port design for improved flow.

Product Highlights

The NIBCO H-58654 provides reliable operation in various heating applications. Its robust construction ensures long-lasting performance.

Product Information

Standard Information

• Manufacturer Part Number: H-58654
• Manufacturer Name: NIBCO Inc. (Webstone)

Technical Specifications

• Actuator Type: Reversible Handle
• Nominal Size: 1-1/4 Inch X 1-1/4 Inch
• End Connection: Female Soldered X Female Soldered
• Body Material: Forged Brass
• Port Type: Full
• Pressure Rating: 600 PSI CWP
• Application: Water, Oil, Glycol Mix in Heating Systems
• Connection Type: Sweat
• Handle Material: Steel
• Inlet to Outlet Length: Seven inches
• Lead-Free: Yes
• Media: Gas, Oil, Water
• Packing Material: Brass
• Seal Material: PTFE
• Seat Material: PTFE
• Series: Pro-Pal® H-x864 Series
• Stem Material: Brass
• Top to Inlet Center: 2.56 inches
• Individual Item Weight: 3.08 lbs
• Package/Shipping Quantity: 1 per Inner Carton
• Package/Shipping Weight: 3.08 lbs
• Series/Model: H-X864
• UPC: 018394586543
• California Proposition 65 Warning: Yes
