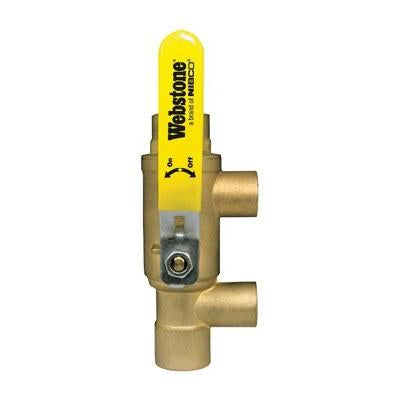

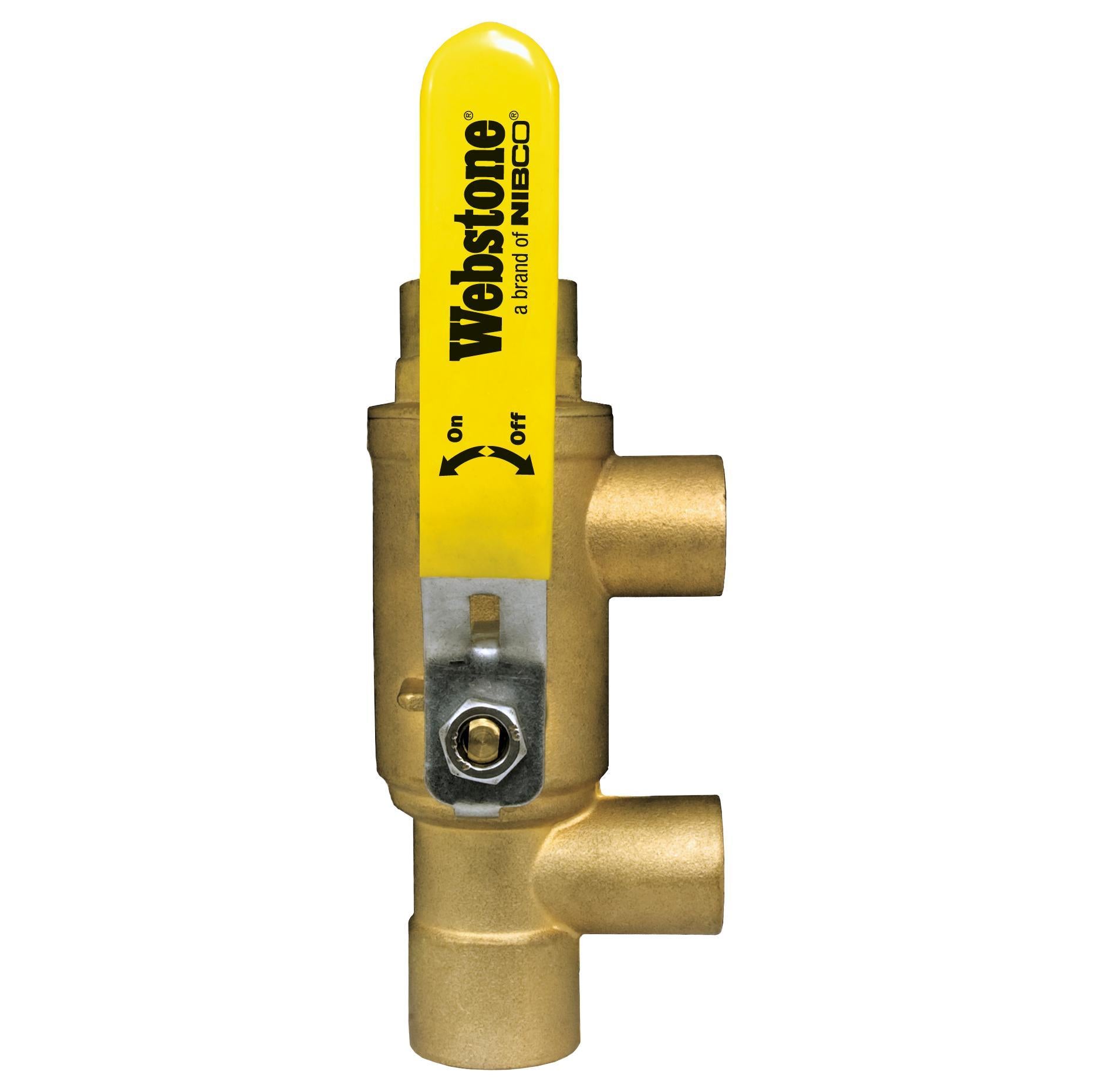

NIBCO H-58644 Purge Tee Ball Valve

Product Description

The NIBCO H-58644 Purge Tee is a forged brass ball valve, ideal for residential, commercial, and industrial hydronic heating systems. This product allows for efficient power purging of individual loops while maintaining proper spacing for hydraulic separation. The valve includes a full port design, a reversible handle, and an adjustable packing gland.

• Designed for optimal flow rate with a full port.
• Enables power purging for secondary loops.
• Provides necessary spacing for hydraulic separation.

Product Highlights

This ball valve is compatible with water, oil, and gas media, essential for maintaining heating systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-58644

Technical Specifications

• Series: H-x864
• Nominal Size: 1 in
• End Style: C Primary Loop x C Secondary Loop
• Connection Type: Sweat
• Body Material: Forged Brass
• Ball Material: HCP Brass
• Seat Material: PTFE
• Pressure Rating: 600 psi
• Temperature Rating: 250 deg F
• Media: Glycol Mixture/Oil/Water
• Inlet to Outlet Length: 5.81 in
• Top to Inlet Center: 2.44 in
• Lead-Free: Yes
• Color: Brass
