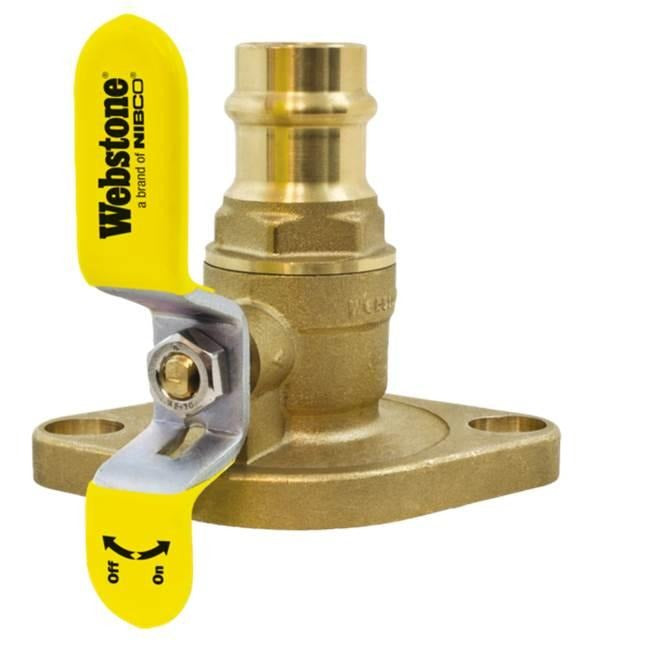

Nibco H-51404HV 5140 Series Ball Valve 1 in Sweat x Flanged

Product Description

Nibco H-51404HV is a 5140 Series 1 in nominal full-port ball valve with a sweat by rotating flanged (C x rotating flange) connection and forged brass body. The one-piece uni-flange construction features an HCP brass ball, brass stem with PTFE seat and softgoods, a wing T-handle actuator, and a removable outer flange secured by a snap ring. Rated 600 psi WOG and 100 deg F for water or glycol mixtures.

• Full-port 1-piece forged brass uni-flange design with sweat x rotating flanged connection.
• Brass HCP ball, brass stem with PTFE seats and PTFE softgoods; wing T-handle actuator.
• Pressure rating 600 psi WOG; temperature rating 100 deg F; inlet-to-outlet length 3-5/16 in.

Product Highlights

1 in full-port brass uni-flange ball valve for pump isolation; rotating C x flange with removable outer flange; PTFE seats; 600 psi WOG, 100 deg F.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-51404HV
• Country of Origin: Import
