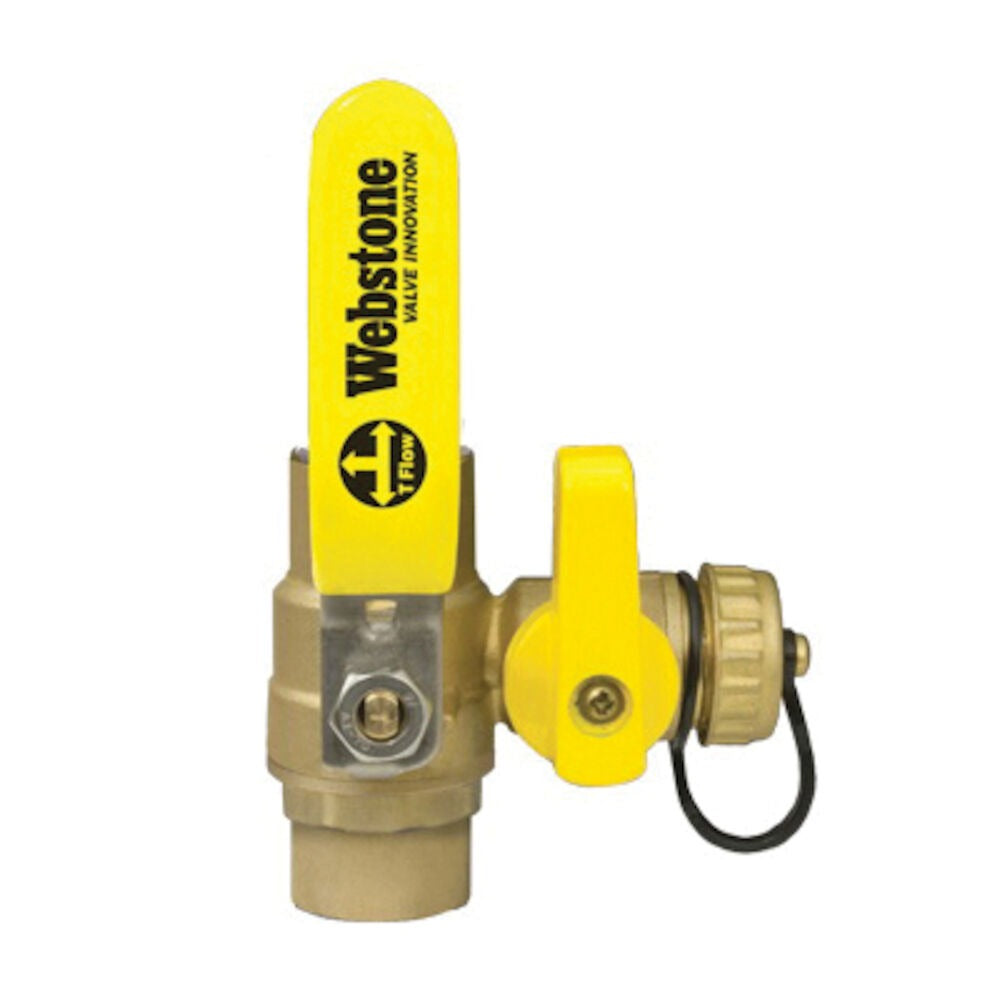

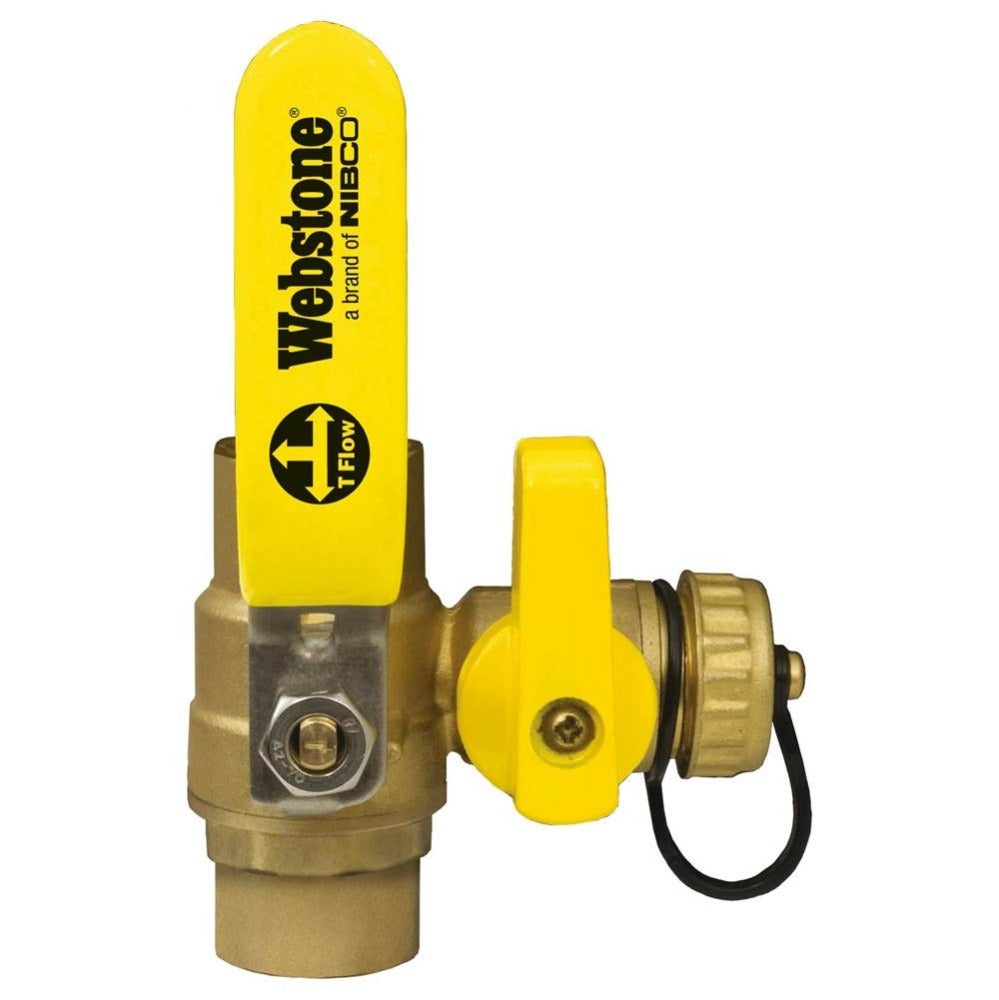

Nibco H-50617W Pro-Pal 5061 Ball Drain Valve (2 in)

Product Description

Nibco H-50617W is a Pro-Pal 5061 full-port ball drain valve designed for use with water, oil and glycol mix in residential and commercial plumbing and heating systems. The 2 in nominal forged brass valve features PTFE softgoods, a hi-flow hose drain and a reversible handle with an adjustable flow path, rated to 600 psi and 100 deg F. It includes a brass stem and PTFE seat.

• Full port forged brass ball valve with PTFE stem seal and PTFE seat; nominal size 2 in.
• Hi-flow hose drain and exclusive adjustable flow path allow draining from either side of the ball; reversible handle actuator.
• Pressure rating 600 psi and temperature rating 100 deg F; inlet-to-outlet length 5-1/2 in and top-to-inlet center 4 in.

Product Highlights

Full-port 2 in forged brass ball drain with hi-flow hose drain, reversible handle, PTFE softgoods; 600 psi, 100 deg F.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-50617W
• Country of Origin: Import
