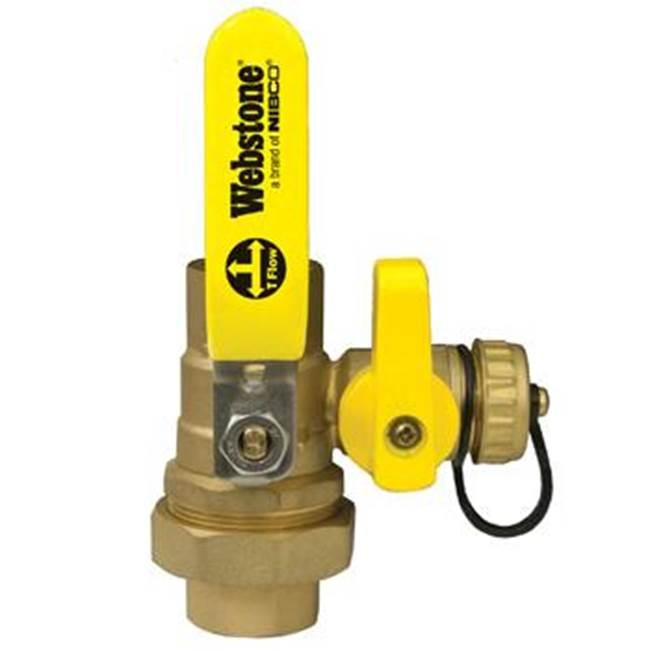

NIBCO H-50433 Ball Valve

Product Description

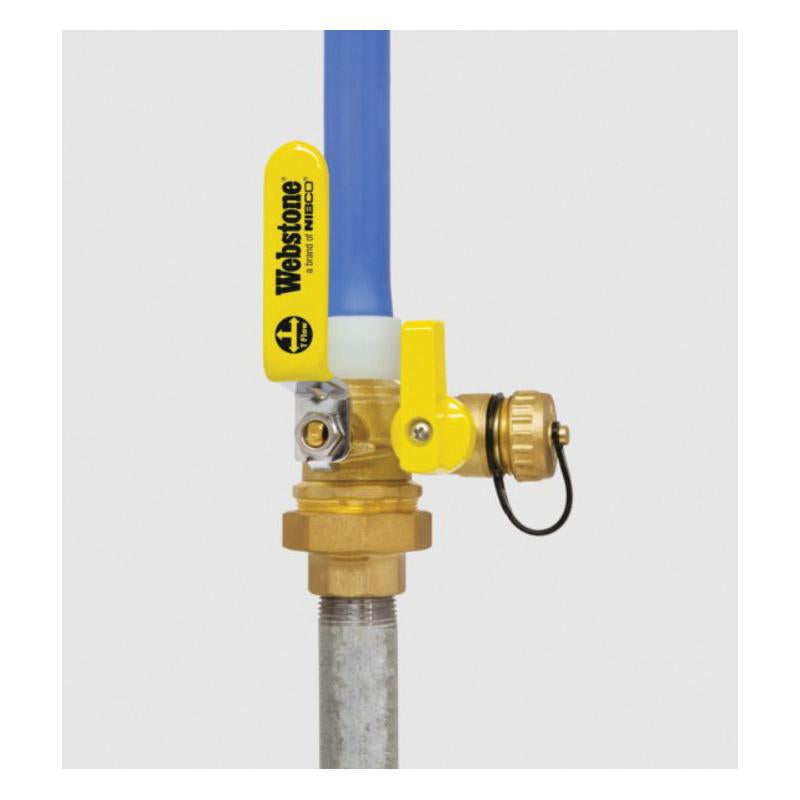

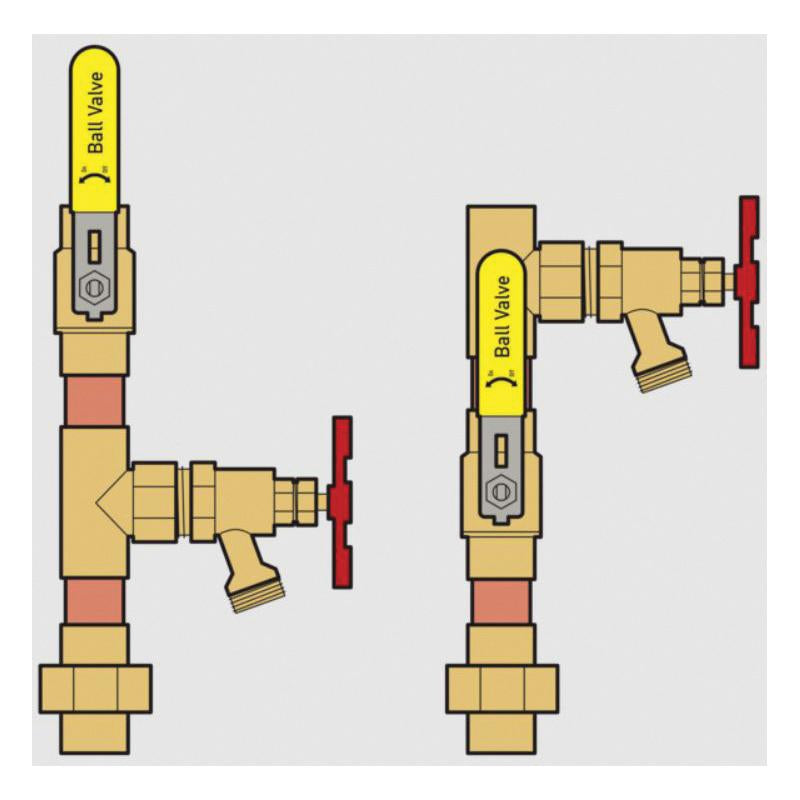

The NIBCO H-50433 is a reliable ball valve suitable for residential and commercial plumbing systems. It features a forged brass body and a full port design for improved flow. This valve can be used with water, oil, and glycol mixtures. It includes a lever handle for easy operation and a union connection that allows for quick disconnection and appliance replacement. A convenient drain is also integrated to isolate and drain sections of the piping system.

• Forged brass construction for durability
• Full port for enhanced flow
• Lever handle for simple operation

Product Highlights

Product Information

Standard Information

• Manufacturer: NIBCO
• MPN: H-50433

Technical Specifications

• Nominal Size: 3/4 in
• End Style: FNPT Union x C
• Connection Type: FIP Union x Sweat
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Temperature Rating: 250
• Media: Glycol Mixture/Oil/Water
• Actuator Type: Lever Handle
• Body Material: Forged Brass
• Ball Material: HCP Brass
• Trim Material: Brass/PTFE
• Softgoods Material: EPDM/PTFE
• Inlet to Outlet Length: 3-1/2 in
• Dimensions: 3-1/2 in L
• Valve Type: Ball Valve
• Weight: 1.59 lb
