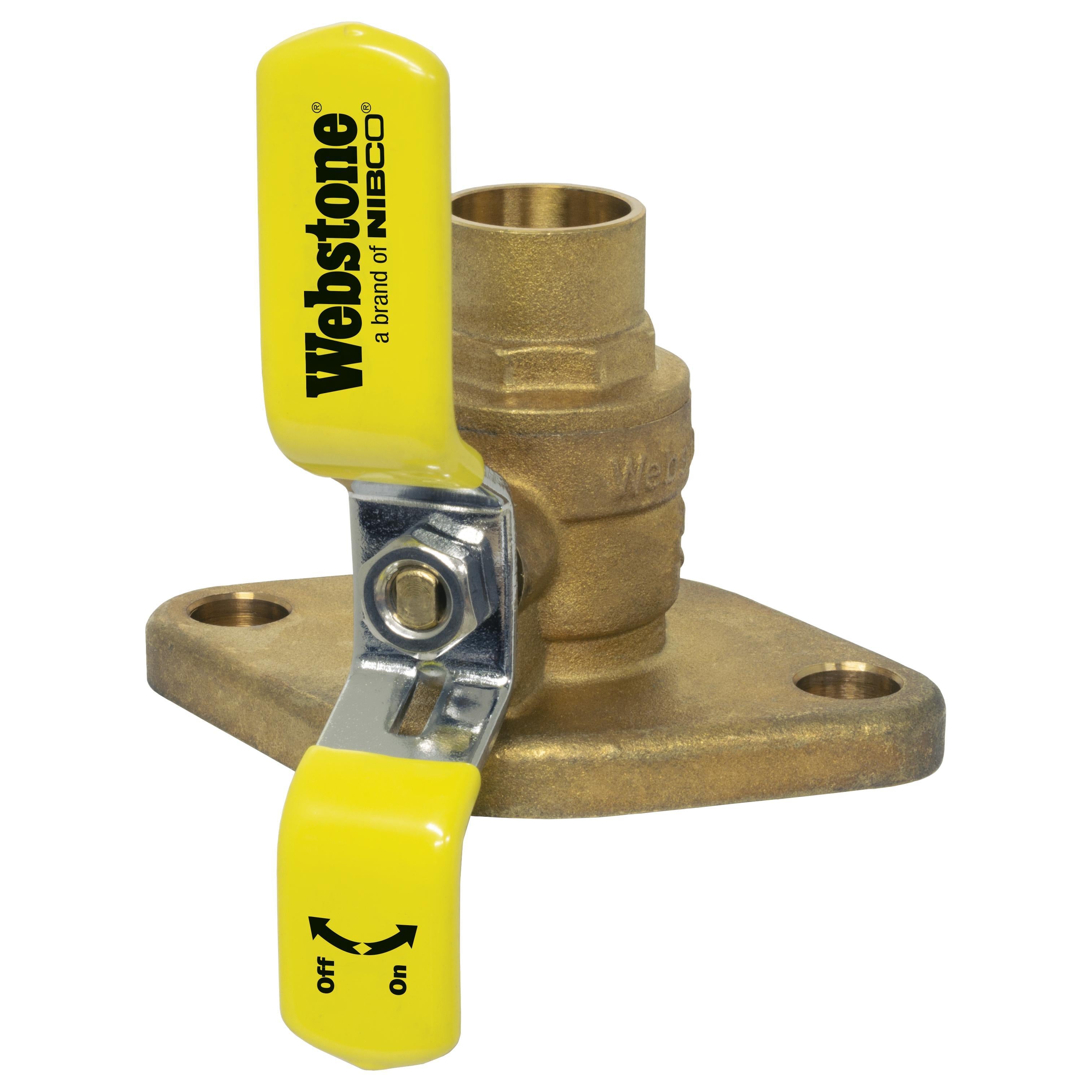

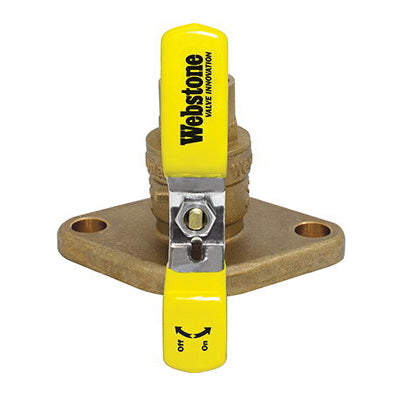

NIBCO H-50405 1-1/4 in. Standard Uni-Flange Ball Valve

Product Description

The NIBCO H-50405 is a standard uni-flange ball valve designed for isolating a circulator pump. This valve is made from forged brass, making it suitable for various plumbing and heating applications in residential, commercial, or industrial settings. It can handle water or a glycol mixture effectively.

• Constructed from forged brass for durability.
• Features a chrome-plated brass ball and PTFE seat.
• Actuated by a lever for easy operation.

Product Highlights

This valve is designed for efficient flow control, reducing turbulence thanks to its specially designed inlet. Ideal for use where a reliable shut-off is needed in plumbing systems.

Product Information

Standard Information

• Manufacturer Part Number: H-50405
• Type: Standard Uni-Flange

Technical Specifications

• Series: 5040
• Nominal Size: 1-1/4 inches
• End Style: C x Flanged
• Pressure Rating: 600 psig WOG
• Temperature Rating: 100 degrees F
• Port Type: Full
• Media: Water/Glycol Mixture
• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 3-1/8 inches
• Top to Inlet Center: 2-13/16 inches
• Body Material: Forged Brass
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: PTFE
• Plumbing Category: Plumbing Supplies
• Plumbing Subcategory: Valves
• Material: Brass
• Height: 3.74 inches
• Length: 5.31 inches
• Width: 3.74 inches
• Domestic/Import: Import
