NIBCO H-45443WPR H-x544 Isolator Valve Kit

Product Description

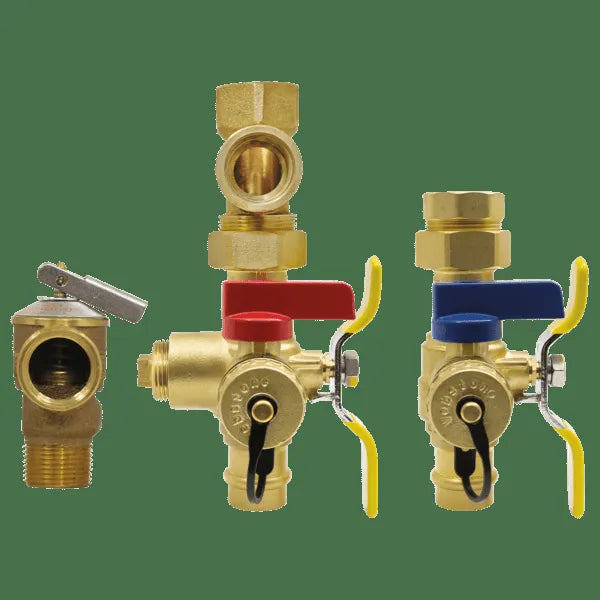

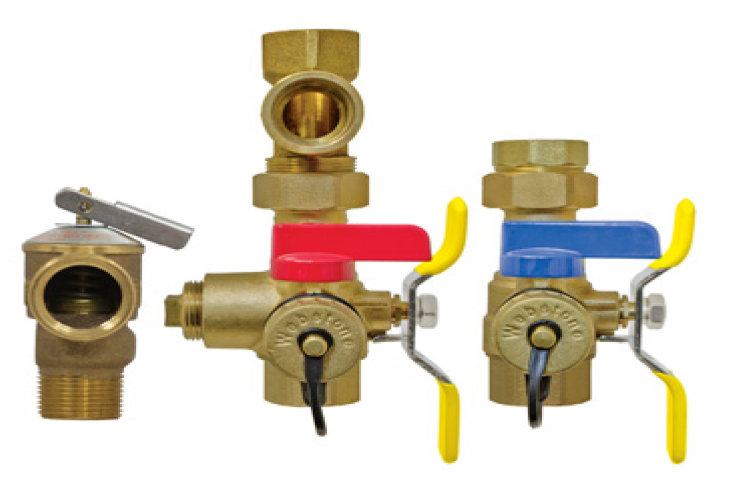

The NIBCO H-45443WPR is a three-quarter inch isolator valve kit suitable for tankless water heater service. It includes a set of hot and cold full port forged brass ball valves.

• Hot and cold full port forged brass ball valves.
• Hi-flow hose drains and adjustable packing glands.
• Residential pressure relief valve rated at 150 PSI and 500,000 BTU/HR.

Product Highlights

This kit is ideal for tankless water heater installations, providing essential flow control and safety features.

Product Information

Standard Information

• Manufacturer Part Number: H-45443WPR
• Type: Isolator

Technical Specifications

• Valve Size: 3/4 inches
• Connection Type: FIP Union x FIP
• Maximum Operating Pressure: 500 psi
• Body Material: Brass
• Ball Material: Brass HCP
• Handle Material: Steel CP
• Height: 2.5625 inches
• Length (Cold): 4.25 inches
• Length (Hot): 6.85 inches
