Product Description

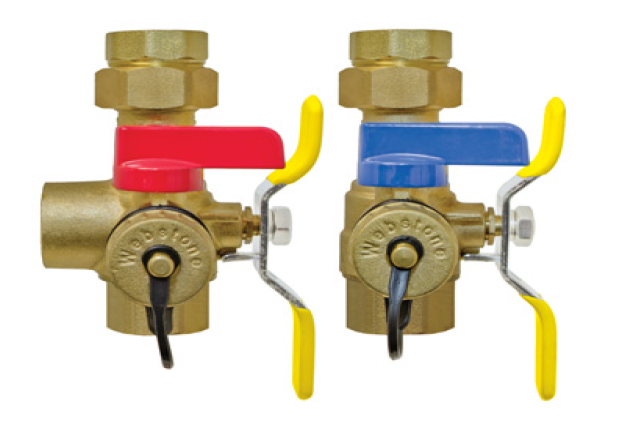

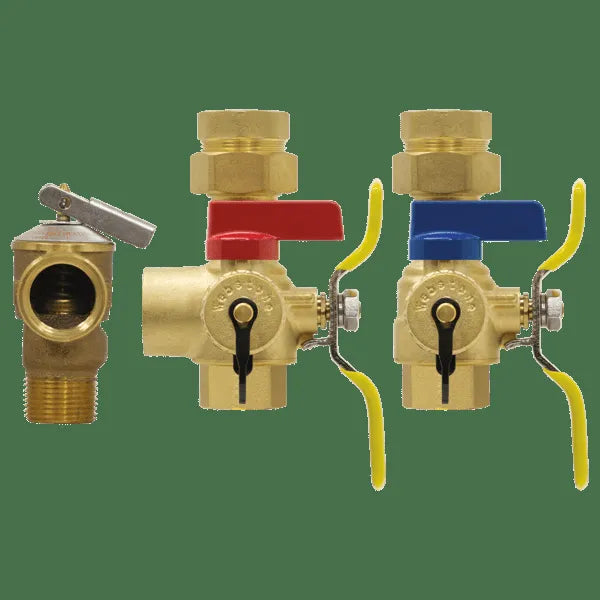

The NIBCO H-44444 is an isolator valve with a one-inch size and FIP Union x FIP connection. It features a wing lever handle for easy operation. The valve is made from forged brass and includes PTFE seats and seals, suitable for both hot and cold water systems. This valve also incorporates hi-flow hose drains and a pressure relief valve outlet.
- Full port forged brass ball valve
- Hi-flow hose drains for efficient drainage
- Adjustable packing glands for optimal sealing
Product Highlights
Constructed for durability and reliable performance in various applications.
Product Information
Standard Information
-
Brand: NIBCO
-
MPN: H-44444
Technical Specifications
-
Type: Isolator
-
Valve Size: 1 in
-
Connection Type: FIP Union x FIP
-
Valve Operator: Wing Lever Handle
-
Maximum Operating Pressure: 500 psi
-
Body Material: Brass
-
Seat Material: PTFE
-
Ball Material: Brass HCP
-
Seal Material: PTFE
-
Handle Nut Material: Stainless Steel
-
Wing Style T Handle Material: Steel CP
-
Handle Jacket Material: Vinyl
-
Packing Gland Material: Brass
-
Stem Seal Material: Brass
-
End Cap Material: Brass
-
Union Nut Material: Brass
-
Retaining Ring Material: Stainless Steel
-
Union Fitting Material: Brass
-
Washer Material: EPDM
-
Drain Valve Handle Material: Enamel Coated Aluminum
-
Cap & Strap Material: Brass w/ EPDM Washer & Strap
-
O-Ring Material: EPDM
-
Press O-Ring Material: EPDM
-
Grip Ring Retainer Material: Plastic
-
Grip Ring Material: Stainless Steel
-
Release Ring Retainer Material: Plastic
-
Release Ring Material: Plastic
-
Inside Diameter (A): 1 in
-
Length (B): 5.00 in
-
Height (C): 2.38 in
-
Handle Length (D): 2.54 in
-
Width (E): 3.11 in
-
Weight: 5.28 lbs.
-
End Connection 1: FPT
-
End Connection 2: FPT
-
End Connections: FPT
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Material: Brass
-
Product Type: Valve
-
Industry Standards/Certifications: NSF/ANSI 61, NSF/ANSI 372
