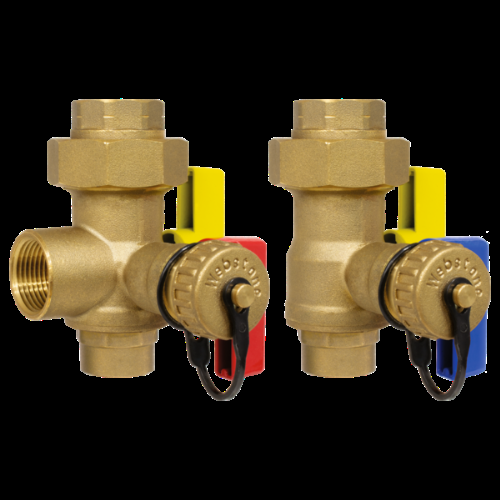

Nibco H-42443W E-X-P Ultra-Compact Tankless Water Heater Service Valve Kit 3/4 inch FIP Union x FIP

Product Description

The Nibco H-42443W is a service valve kit designed for tankless water heaters. This kit features full port forged DZR brass ball valves for hot and cold lines. It connects with a three-fourth inch FIP union, ensuring reliable water supply management. Ideal for professional plumbing applications, it boasts a maximum pressure rating of two hundred fifty PSI and can handle temperatures up to two hundred degrees Fahrenheit.

• Compact design fits in under four inches of space.

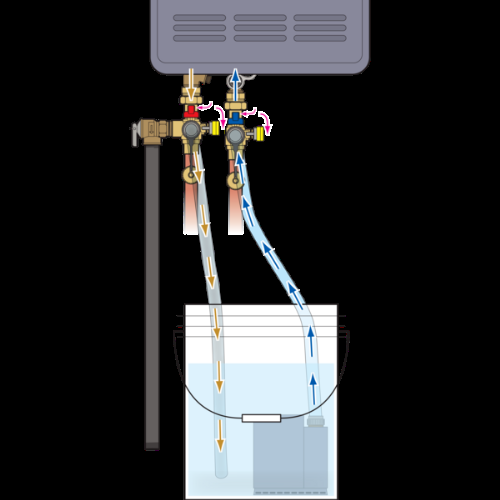

• Allows for easy cleaning and flushing.
• Features integrated spring check to reduce leaks and save on labor.

Product Highlights

Reliable operation and efficient space management make this valve kit suitable for diagnostics and maintenance.

Product Information

Standard Information

• Brand: Nibco
• MPN: H-42443W

Technical Specifications

• Item Name: Service Valve Kit
• For Use With: Tankless Water Heater
• Nominal Size: 3/4 inch
• Connection: 3/4 inch FIP Union x 3/4 inch FIP
• Body Material: Brass
• Standards/Approvals: NSF/ANSI 61 & 372
