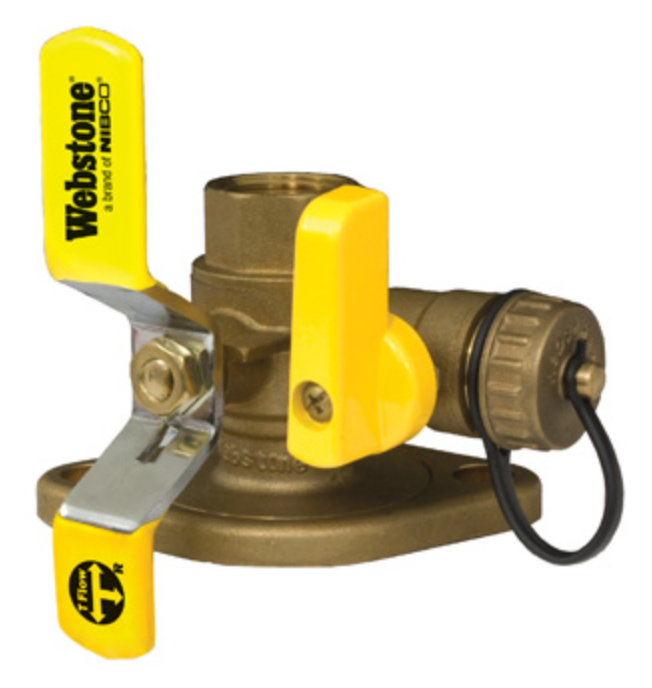

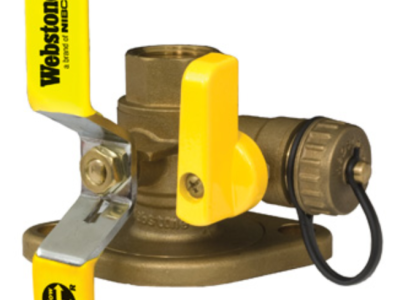

NIBCO H-41415 Webstone The Isolator Standard Uni-Flange Ball Valve 1-1/4 in

Product Description

The NIBCO H-41415 Webstone The Isolator is a uni-flange ball valve designed to isolate a circulator pump, minimizing air entry during pump replacement or servicing. This valve's innovative construction integrates multiple components into a single forged brass body, optimizing time, labor, and space.

• Designed for water, oil, and glycol mixes in plumbing and heating systems.
• Helps prevent electrolysis and eliminates galvanic corrosion.
• Features a rotating flange secured by a snug-fit snap ring.

Product Highlights

The Isolator simplifies circulator pump installations. It is a leading solution in the flanged ball valve market.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-41415

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: HCP Brass
• Body Material: Forged Brass
• End Style: FNPT x Rotating Flange
• Media: Glycol Mixture/Oil/Water
• Nominal Size: 1-1/4 in
• Orifice Size: 1-1/4 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Softgoods Material: PTFE
• Temperature Rating: 100 deg F
• Type: Standard Uni-Flange
• Connection Type: Female NPT
• Approximate Height: 3.4375 inches
• Approximate Length: 2.0 inches
• Approximate Width: 4.125 inches
