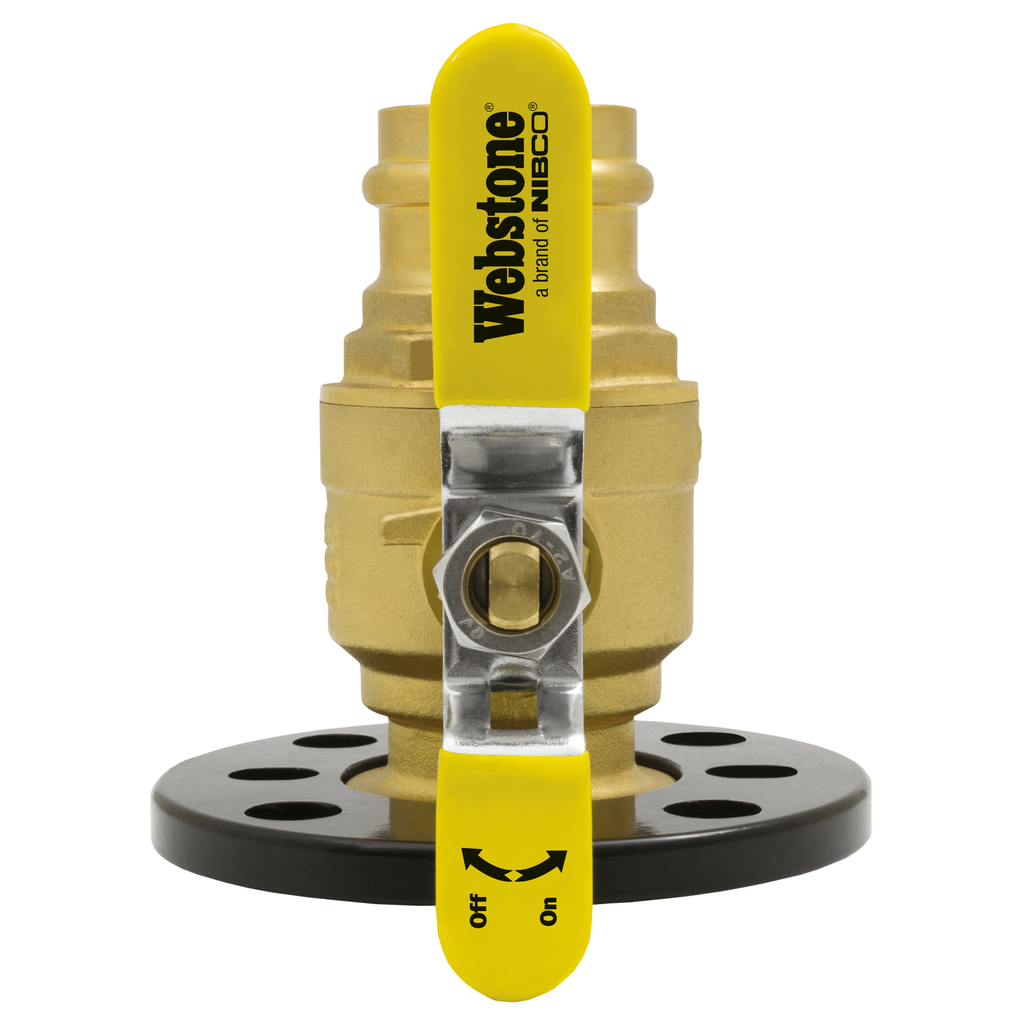

NIBCO H-41407HV-RF400 Isolator W/Rot Flange 2 IPS H-41407HV-RF400

Product Description

The NIBCO H-41407HV-RF400 Isolator is a uni-flange ball valve that isolates a circulator pump, which helps in maintaining system integrity during pump service. This product is constructed with a single forged brass body, minimizing labor and conserving space. It is compatible with a variety of fluids including water, oil, and glycol, making it ideal for both residential and commercial plumbing and heating systems.

• Eliminates two leak paths for improved efficiency.
• Versatile connection options: FIP x FLG, SWT x FLG, PRS x FLG.
• Designed for high-efficiency variable speed pumps.

Product Highlights

The NIBCO H-41407HV-RF400 is built with a blowout-proof stem and an adjustable packing gland, ensuring reliability and performance in various plumbing applications.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-41407HV-RF400

Technical Specifications

• End Connection: Flanged
• Nominal Size: 2 inches x 2 inches
• Type of Valve: Ball Valve - Combination
• Valve End Connection Type: FIP x Rotating Flange
• Length: 5.700 inches
• Width: 4.600 inches
• Height: 4.100 inches
• Actuator Type: Lever Handle
• Ball Material: HCP Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: IPS x Rotating Flanged
• Inlet to Outlet Length: 4.375 inches
• Media: Water/Glycol Mixture
• Port Type: Full
• Pressure Rating: 600 psi
• Series: 4140HV-RF
• Softgoods Material: PTFE
• Temperature Rating: 100 degrees F
• Top to Inlet Center: 3.5 inches
• Trim Material: Brass Stem and PTFE Seat
