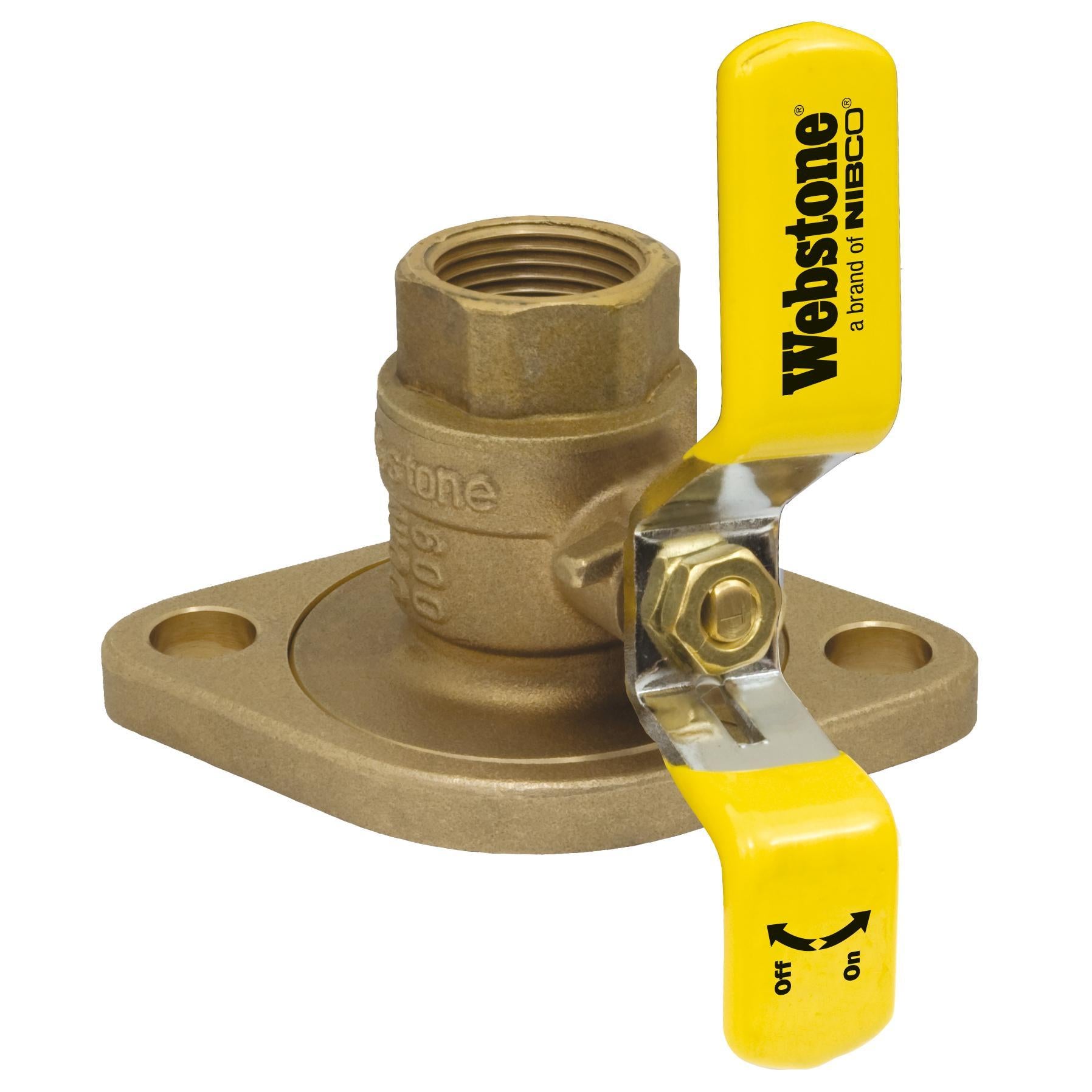

Nibco H-41405HV Webstone The Isolator Clean Brass Ball Valve 1-1/4 Inch, IPSxRotating Flange

Product Description

The NIBCO H-41405HV Webstone The Isolator Clean Brass Ball Valve is a 1-1/4 inch full port valve for residential, commercial, or industrial use with water or glycol mixtures. It features a brass body, PTFE softgoods, and a Wing T-Handle actuator. Actuated by a blow-out proof stem, it includes an adjustable packing gland. The rotating flange, secured by a snug-fit snap-ring, ensures precise positioning and minimizes turbulence. It is rated for 600 psi WOG and 100 deg F.

• Unique uni-body design replaces three components, eliminating two leak paths and saving labor.
• Solid forged brass outer flange with 360-degree rotation offers greater installation flexibility.
• Prevents electrolysis and eliminates galvanic corrosion, fitting standard and high velocity pumps.

Product Highlights

Combines multiple components into a single forged brass body, simplifying installation and preventing corrosion.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-41405HV
• Country of Origin: Import

Technical Specifications

• Body Material: Brass
• End Style: IPS x Rotating Flange
• Nominal Size: 1-1/4 in
• Port Type: Full
• Softgoods Material: PTFE
• Actuator Type: Wing T-Handle
• Ball Material: HCP Brass
• Media: Water/Glycol Mixture
• Series: 4140
• Temperature Rating: 100 deg F
• Trim Material: Brass Stem and PTFE Seat
• Pressure Rating: 600 psi WOG
