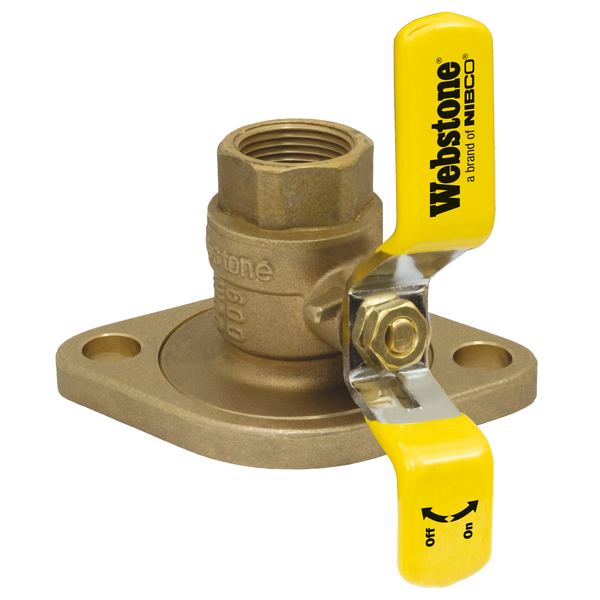

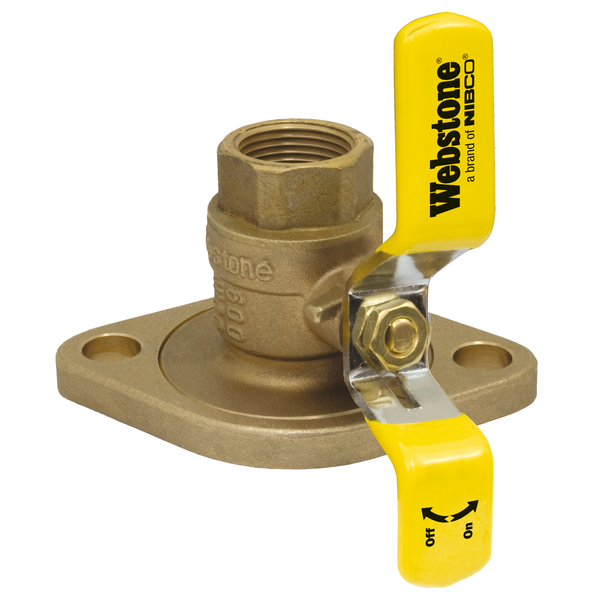

Nibco h-41403hv webstone the isolator clean brass ball valve 3/4 inches ipsxrotating flange

Product Description

The NIBCO H-41403HV is a Webstone The Isolator Clean Brass Ball Valve, designed for residential, commercial, or industrial applications with water or glycol mixtures. This 3/4 inch full port brass valve features a PTFE stem seal and an adjustable packing gland, actuated by a wing T-handle. Its rotating flange, secured by a snap-ring, allows for precise positioning during installation, minimizing turbulence with a conical inlet. Threaded ends comply with ANSI B1.20.1, suitable for temperatures up to 100 deg F.

• Unique uni-body design is preserved
• Replaces 3 components, eliminates 2 leak paths saves 18 min of labor
• 360 deg rotation offers greater flexibility

Product Highlights

Full port forged brass uni-flange ball valve with a rotating flange for flexible installation and reduced labor.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-41403HV

Technical Specifications

• Body Material: BRASS
• End Style: IPS x Rotating Flange
• Nominal Size: 3/4 in
• Port Type: Full
• Softgoods Material: PTFE
• Actuator Type: Wing T-Handle
• Ball Material: HCP Brass
• Inlet to Outlet Length: 2-3/8
• Media: Water/Glycol Mixture
• Series: 4140
• Temperature Rating: 100 deg F
• Top to Inlet Center: 2-13/16
• Trim Material: Brass Stem and PTFE Seat
