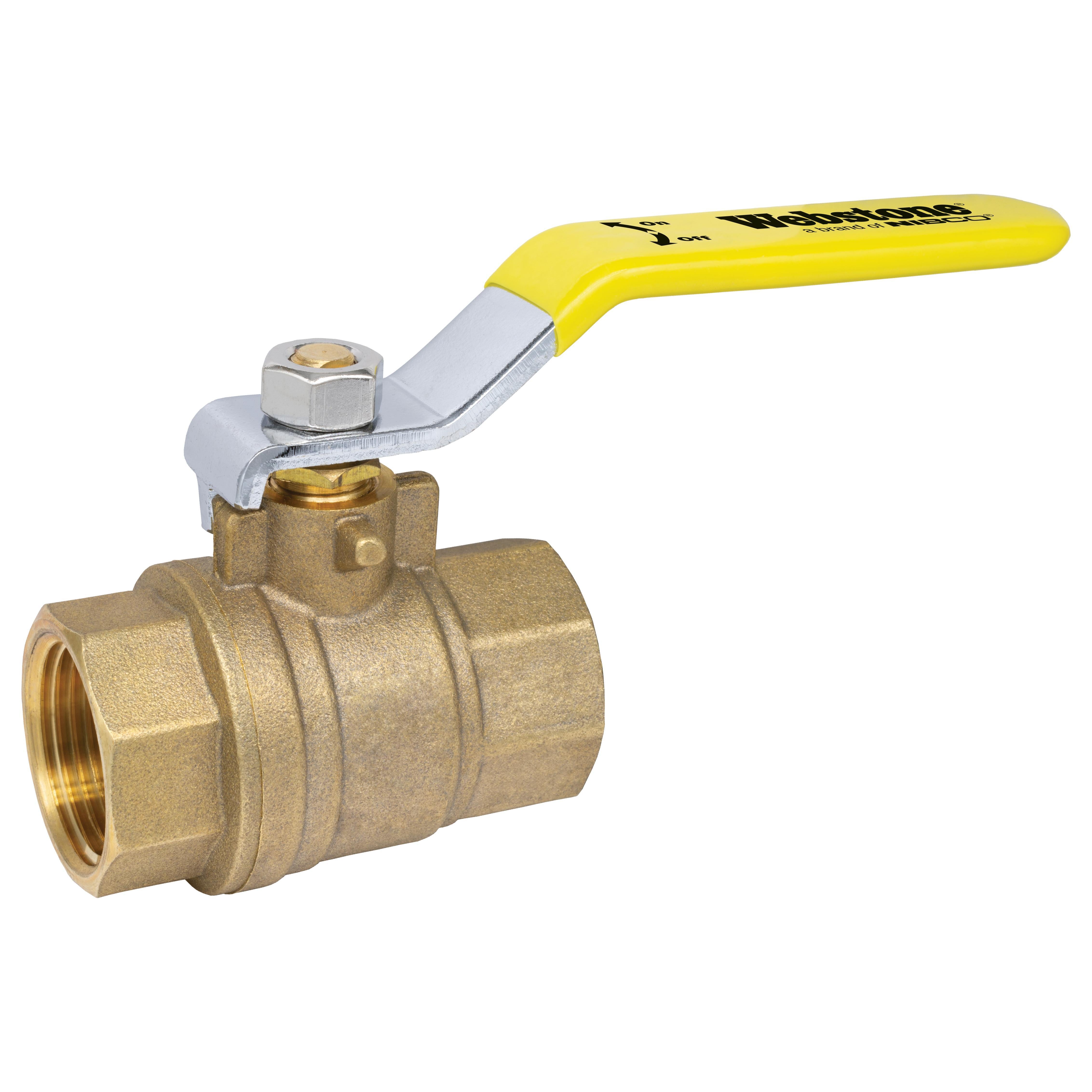

NIBCO H-40703 Full Port Forged Brass Ball Valve

Product Description

The NIBCO H-40703 is a full port forged brass ball valve used for controlling the flow of various media. This valve is designed with a quarter-turn lever handle for ease of operation and features an adjustable packing gland. It is suitable for applications with gas, oil, and water.

• Full port design for maximum flow.
• Made of durable DZR brass material.
• Utilizes a PTFE ball seat for reliable sealing.

Product Highlights

This valve offers a sturdy design and is ideal for trades involving plumbing and HVAC systems.

Product Information

Standard Information

• Manufacturer Part Number: H-40703
• Series: H-X170

Technical Specifications

• Nominal Size: 3/4 inches
• End Connection 1: FIPT
• End Connection 2: FIPT
• Body Material: DZR Brass
• Valve Type: Ball Valve
• Port Type: Full
• Pressure Rating: 600 psi
• Temperature Rating: 200 degrees F
• Media: Gas, Oil, Water
• Inlet to Outlet Length: 2.11 inches
• Orifice Size: 0.75 inches
• Weight: 0.66 lbs
• Dimensions: Depth 4-24/25 inches, Height 1-49/100 inches, Length 2-9/25 inches, Width 2-43/50 inches
• Certifications: NSF Certified, cUPC Certified
