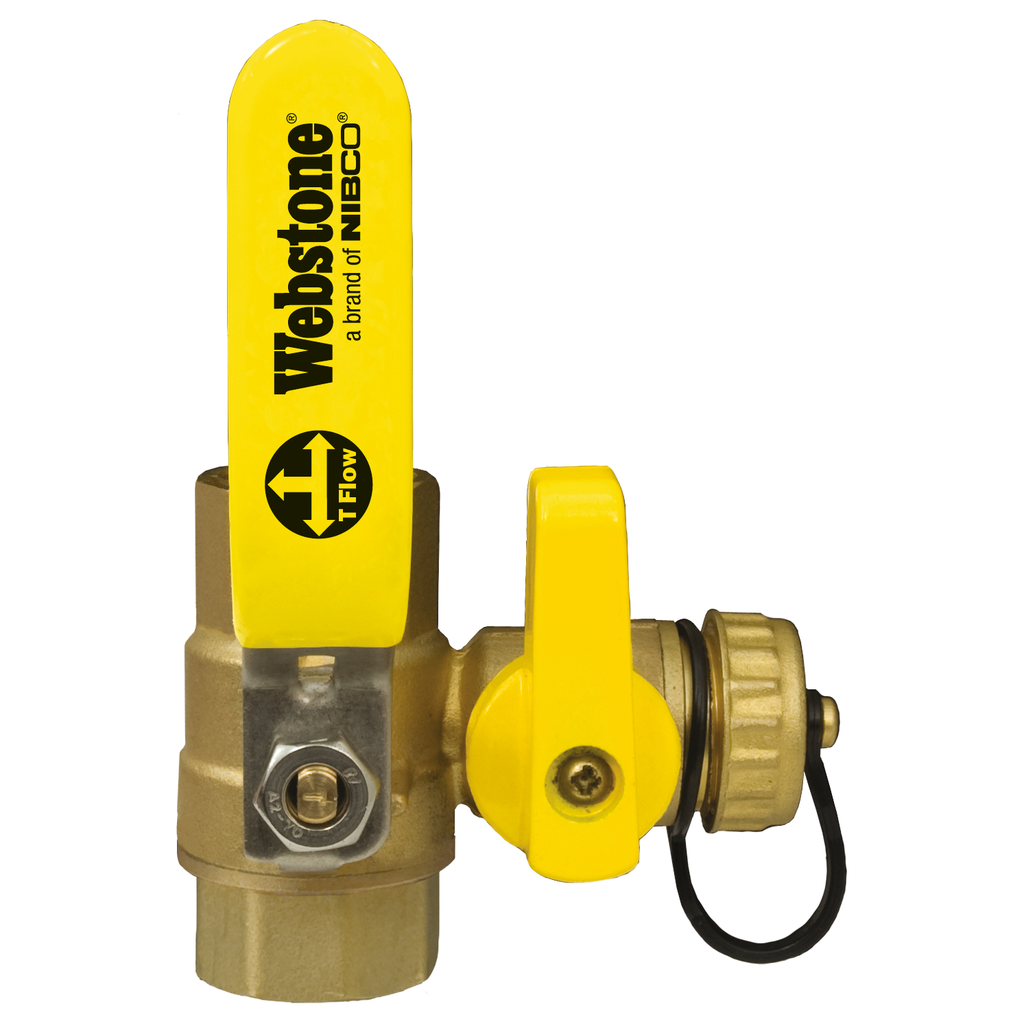

Nibco H-40615 Ips Ball Drain 1-1/4 inch

Product Description

The Nibco H-40615 is a 1-1/4" IPS ball drain designed for efficient installation and system operation. This standard ball valve features a high flow hose drain, adjustable packing gland, and a forged brass body. It is designed for use with water, oil, and glycol mixtures in residential or commercial plumbing and heating systems.

• Eliminates assemblies needed to isolate and drain any portion of a piped system
• Exclusive adjustable flow path allow for draining from either side of the ball
• Saves 27 min

Product Highlights

The Nibco H-40615 ball valve is ideal for residential and commercial plumbing, and heating systems using water, oil, and glycol mixtures.

Product Information

Standard Information

• Brand: Nibco
• Manufacturer Part Number: H-40615
• Country of Origin: Import

Technical Specifications

• MPN: H-40615
• Brand: NIBCO
• Actuator Type: Lever Handle
• Ball Material: HCP Brass
• Body Material: Forged Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 3-1/2 in
• Media: Glycol Mixture/Oil/Water
• Nominal Size: 1-1/4 In
• Orifice Size: 3/4 in
• Port Type: Full
• Pressure Rating: 600 psi CWP
• Series: Pro-Pal 4061
• Softgoods Material: EPDM/PTFE
• Temperature Rating: 350 deg F
• Top to Inlet Center: 3 in
• Trim Material: Brass/PTFE
• Type: Standard
• Material: Brass
• Lead Free: No
• P1 Size: 1-1/4
• P1 Connection: Female Pipe Thread
• P2 Size: 1-1/4
• P2 Connection: Female Pipe Thread
• WOG Pressure rating: 600 PSIG
• Body Style: 2 piece
• Bore: Full Port
• Valve End Connection Type: FIP
• Type of Valve: Ball Valve - Comibination
