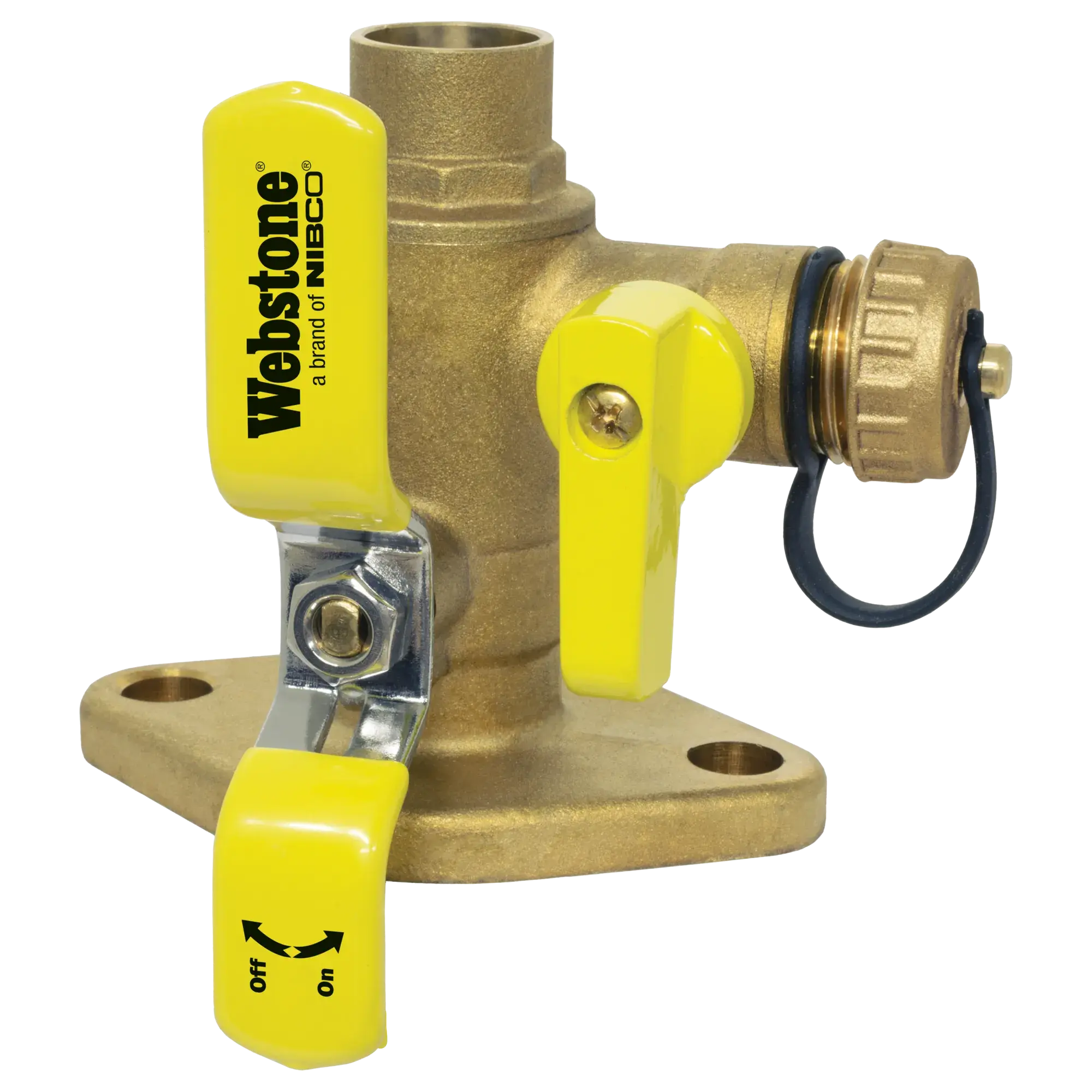

Nibco H-40415HV Isolator Uni-Flange Ball Valve w/ Drain

Product Description

The NIBCO H-40415HV is an isolator with drain, full port forged brass uni-flange ball valve, with hi-flow hose drain, adjustable packing glands, nuts & bolts. It easily isolates the pump for replacement and prevents electrolysis and eliminates galvanic corrosion. The flange features a conical inlet to minimize turbulence.

• Easily Isolates the Pump for Replacement
• Prevents Electrolysis and Eliminates Galvanic Corrosion
• Flange Features a Conical Inlet to Minimize Turbulence

Product Highlights

Multi-function drain makes the isolator the only valve that drains from either side of the pump. Fits virtually any standard circulator pump. Saves 63 minutes and replaces 8 components.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-40415HV

Technical Specifications

• MPN: H-40415HV
• Valve Type: Ball Valve
• Material: Forged Brass
• Port Type: Full Port
• Features: Adjustable Packing Glands, Blowout Proof Stem, Hi-Flow Hose Drain
• Certifications: NSF/ANSI 61, P65-Lead
• Available In: SWT, PRS, FIP x FLG, SWT x FLG
