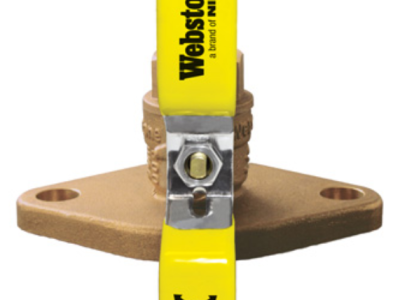

Nibco H-40406 Webstone Isolator Uni-Flange Brass 1-1/2 inch Female Circulator Full Port Ball Valve Flange with Nuts and Bolts

Product Description

The Nibco H-40406 Webstone Isolator is a uni-flange ball valve with a conical inlet to minimize turbulence. It fits virtually any standard circulator, but is not for high velocity circulators. This valve prevents electrolosis and eliminates galvanic corrosion, and features an adjustable packing nut.

• Uni-flange ball valves are sold separately
• Conical inlet to minimize turbulence
• Fits virtually any standard circulator

Product Highlights

The Nibco H-40406 is a brass ball valve with a 1-1/2 inch female NPT connection, ideal for standard circulator systems.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-40406
• Country of Origin: China

Technical Specifications

• Potable: Non-Potable
• Ball Valve: Yes
• Connection Type: Female NPT
• Pipe Size: 1-1/2
• Drain: No
• Approximate Height (inches): 4.375
• Approximate Length (inches): 2.0
• Approximate Weight (pounds): 2.95
• Approximate Width (inches): 4.125
• Suitable Media: Water
• Technical Standard: National Pipe Taper (NPT)
• Housing Material: Brass
• WOG Rating: 600PSI CWP
• Valve Operation: Manual
• MPN: H-40406
• WSP Rating: 600 CWP
• Diameter: 1-1/2 in
• Country of Origin: China
