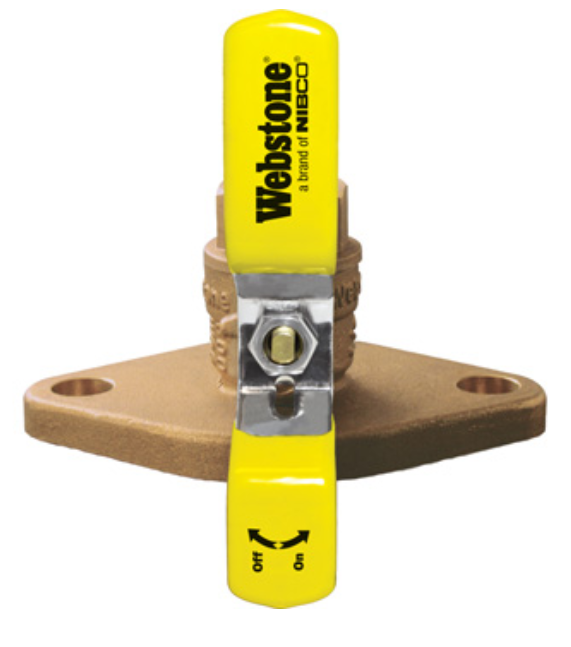

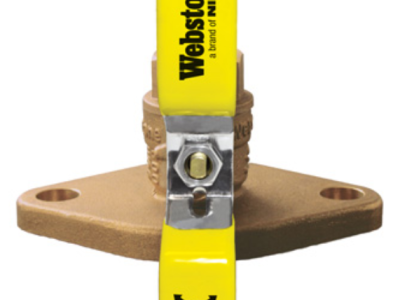

NIBCO H-40404 Isolator Uni-Flange Ball Valve

Product Description

The NIBCO H-40404 is a uni-flange ball valve designed for isolating circulator pumps. With a forged brass body, it features a conical inlet to reduce turbulence. This full port valve is suitable for use with water, oil, and glycol mixtures in both residential and commercial plumbing and heating systems.

• Female NPT connection type included.
• Full port design for optimal flow.
• Comes with nuts and bolts for installation.

Product Highlights

This valve helps prevent electrolysis and eliminates galvanic corrosion. It is ideal for applications requiring reliable isolation of fluid systems.

Product Information

Standard Information

• MPN: H-40404
• Brand: NIBCO

Technical Specifications

• Connection Type: Female NPT
• Pipe Size: 1 inch
• Approximate Height: 2.875 inches
• Approximate Length: 2.0 inches
• Approximate Weight: 1.75 pounds
• Approximate Width: 4.125 inches
• Ball Material: Brass
• Body Material: Forged Brass
• Orifice Size: 1 inch
• Maximum Pressure Rating: 600 psi CWP
• Temperature Rating: 100 degrees F
• Trim Material: Brass/PTFE
• Finish: Polished Chrome
• Suitable For Use With: The ISOLATOR® 4040 Series Full Port Forged Brass Uni-Flange Ball Valve
