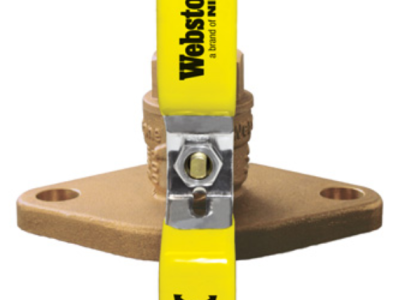

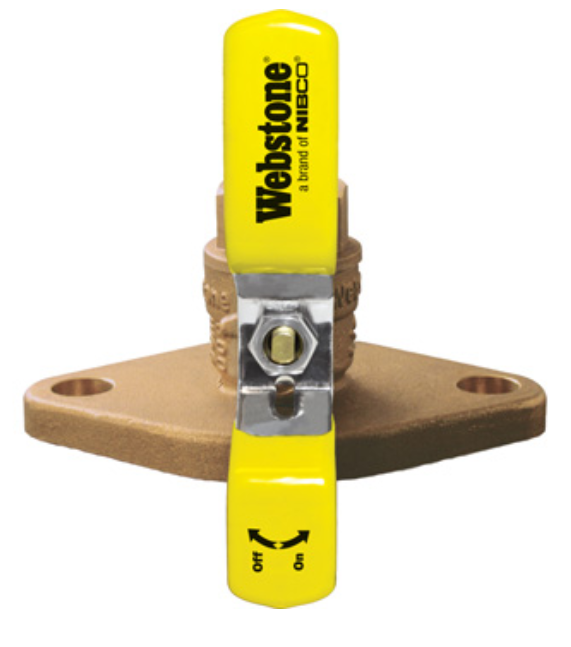

NIBCO H-40403 3/4-inch Isolator Uni-Flange Ball Valve

Product Description

The NIBCO H-40403 is a three-fourth inch isolator ball valve designed with a uni-flange structure. It is made from forged brass and features a full port design. One end has a female NPT connection while the other end has a flanged connection, making it suitable for isolating pumps. This valve includes a conical inlet that reduces turbulence, aiding in smooth flow management. It effectively prevents electrolysis and galvanic corrosion, ensuring a longer service life. Use this valve primarily in non-potable water applications.

• Conical inlet design minimizes turbulence.
• Prevents electrolysis and galvanic corrosion.
• Adjustable packing nut for maintenance.

Product Highlights

The NIBCO H-40403 provides reliable isolation for pump replacement while maintaining flow integrity.

Product Information

Standard Information

• Manufacturer Part Number: H-40403
• Application Type: Non-Potable

Technical Specifications

• Connection Type: Female NPT
• Pipe Size: 3/4 inch
• Height: 2.4375 inches
• Length: 2.0 inches
• Weight: 1.20 lbs
• Width: 4.125 inches
• ANSI Ratings: ANSI 61, ANSI B1.20.1
• End Connections: FPT x Flanged
• Handle Material: Steel
• NSF Certification: Yes
• Pressure Rating: 600 psi
• Temperature Rating: 100 °F
• Valve Type: Ball Valve
• Valve Operator: Lever Handle
