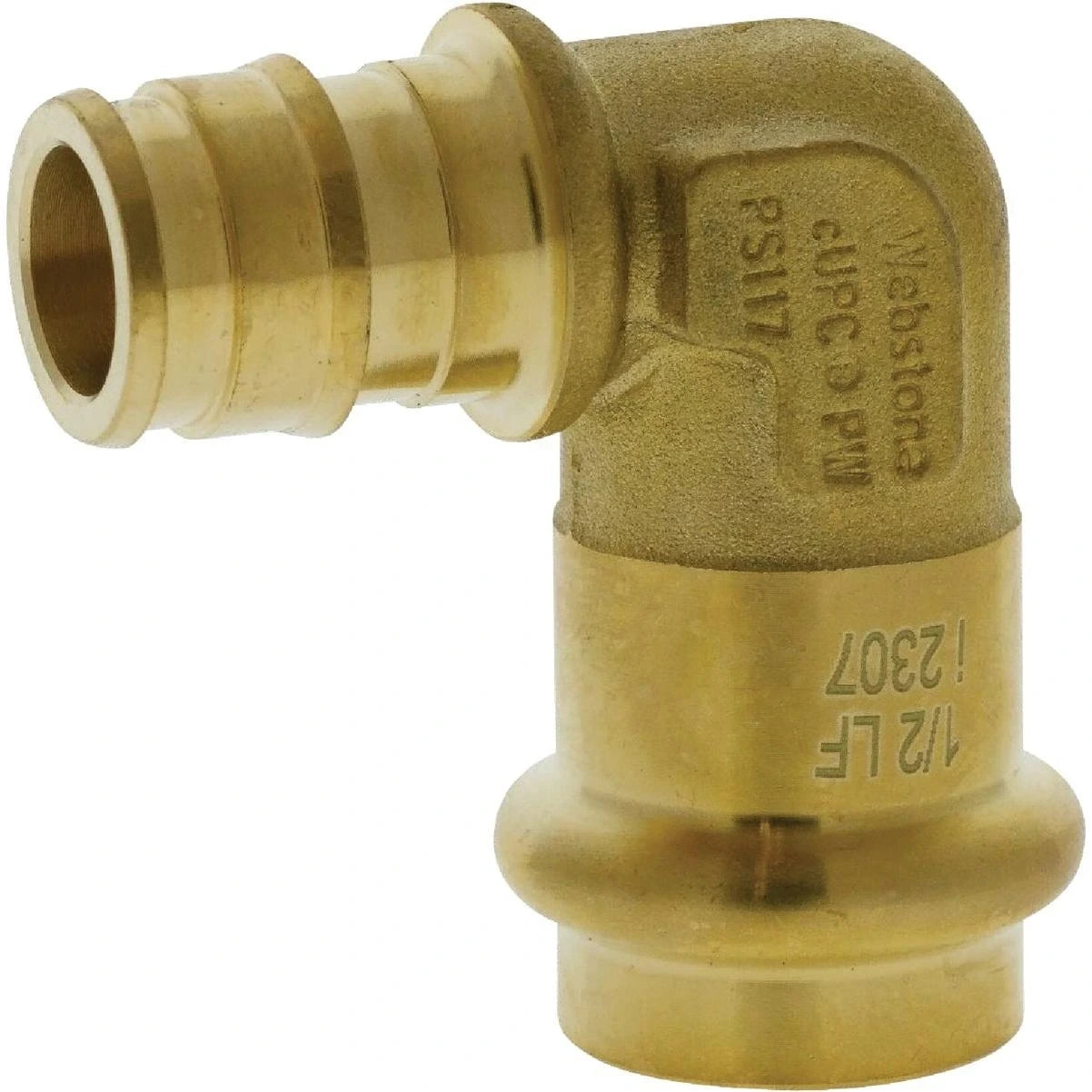

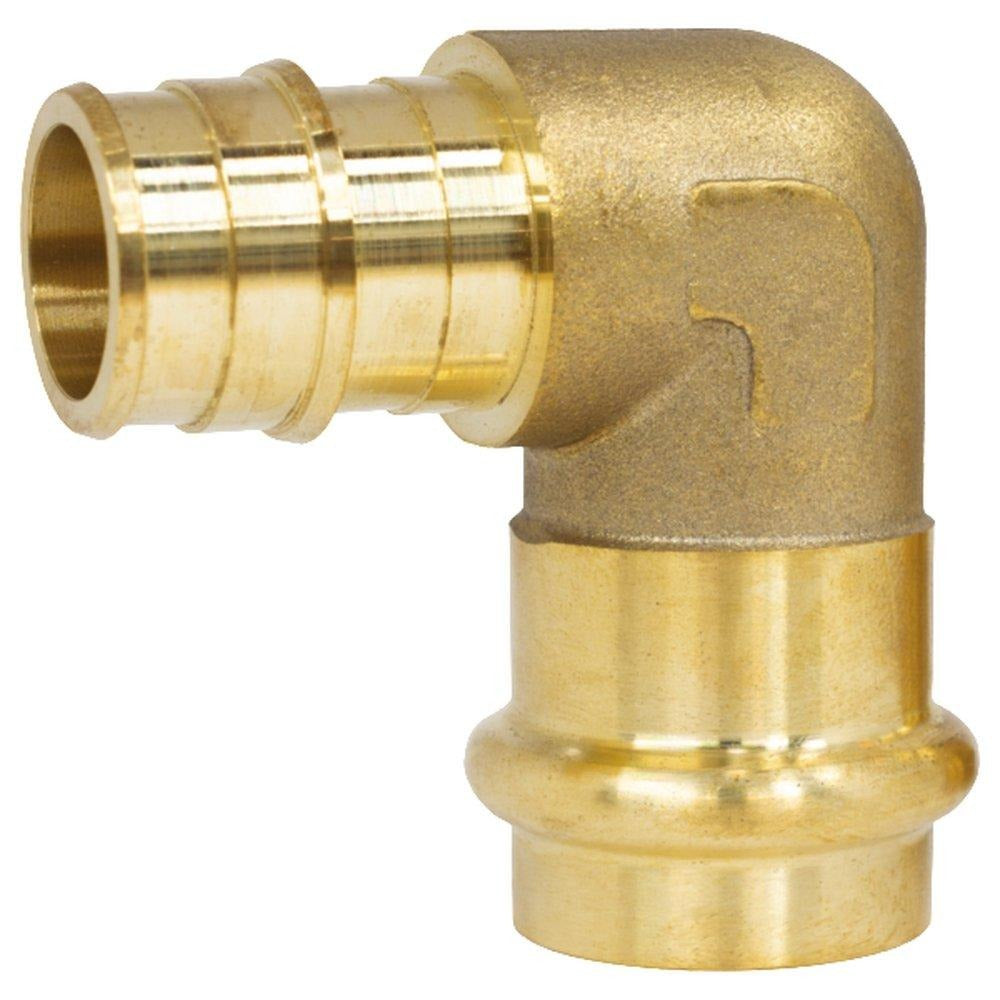

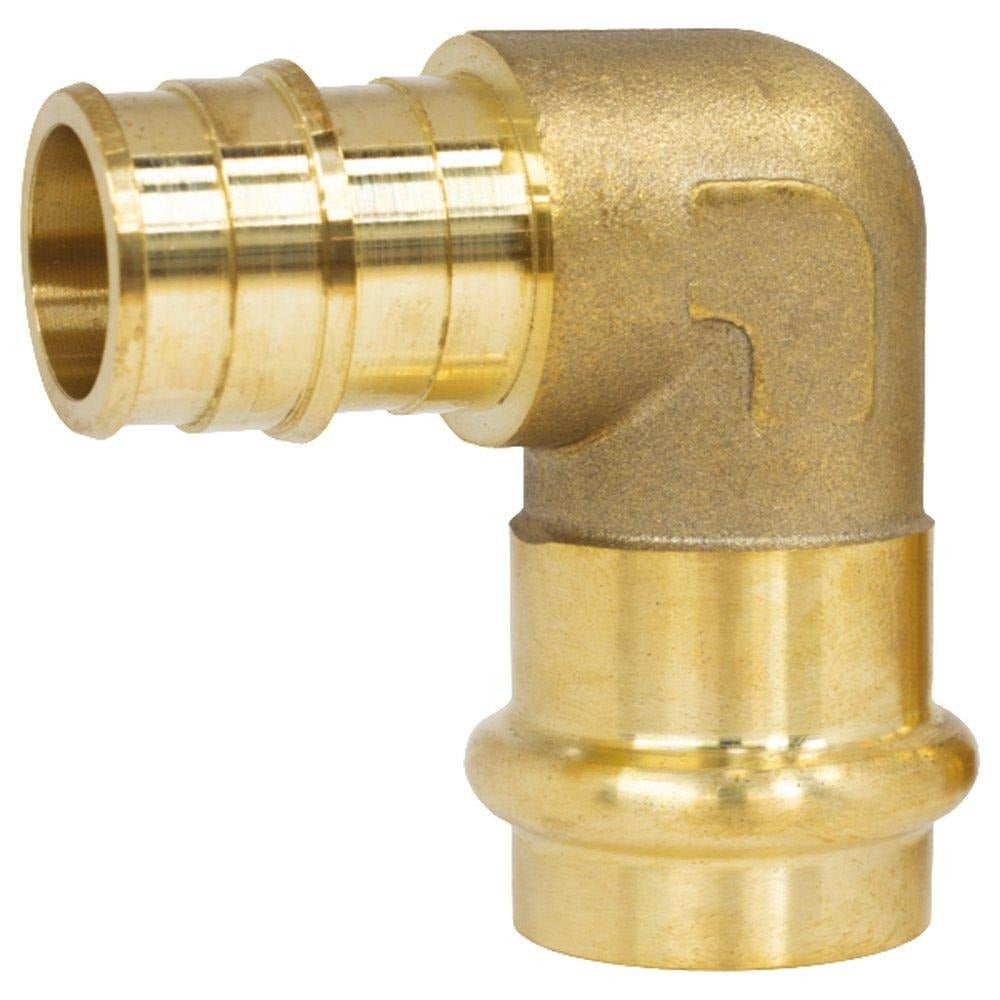

Nibco H-36842W Forged DZR Brass 90 Degree Transition Elbow 1/2 in (90 degree)

Product Description

The NIBCO H-36842W is a 1/2 inch forged DZR brass 90-degree transition elbow with a press x ASTM F1960 PEX connection, designed to transition PEX to press or copper systems. The fitting features a lead-free DZR brass body and EPDM O-ring, and is rated to 250 psi and 250 F. Technical resources include CAD and Revit models and a downloadable product datasheet.

• Press x ASTM F1960 PEX connection; 1/2 inch size, 90-degree elbow for transitioning PEX to press/copper systems
• Lead-free DZR brass body with EPDM O-ring; maximum operating pressure 250 psi and maximum temperature 250 F
• Certifications include NSF/ANSI 61, NSF/ANSI 372, NSF/ANSI 14; includes CAD/Revit models and technical drawing

Product Highlights

Forged DZR brass 90-degree press x F1960 PEX transition elbow, 1/2 in, 250 psi/250 F rating, EPDM O-ring, NSF certified

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-36842W
• Country of Origin: Mexico
