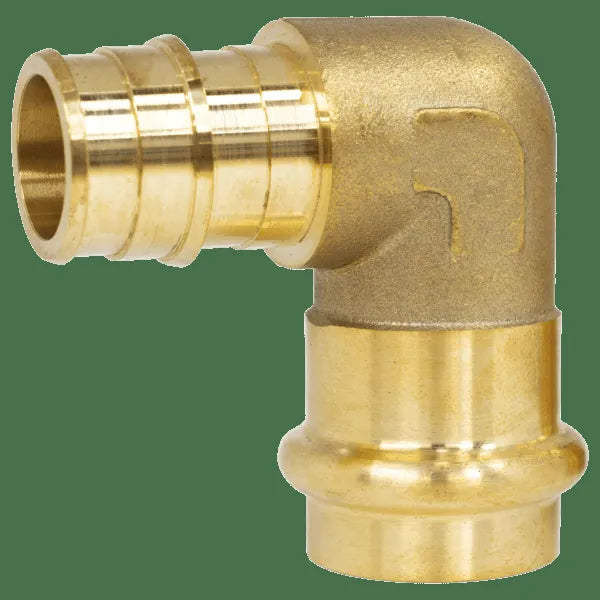

NIBCO H-16843W Forged DZR Brass 90 Degree Transition Elbow

Product Description

The NIBCO H-16843W is a 90-degree transition elbow crafted to connect press and ASTM F1807 PEX systems. Made from lead-free DZR brass, this fitting is suitable for use with potable water. It features a press connection on one end and an ASTM F1807 PEX connection on the other, enabling seamless transitions between diverse piping materials. This fitting meets NSF/ANSI 61 & 372 and NSF/ANSI 14 standards.

• Press connection on one end and ASTM F1807 PEX on the other.
• Constructed from lead-free DZR brass.
• Maximum operating temperature of two hundred fifty degrees Fahrenheit and pressure of two hundred fifty psi.

Product Highlights

This transition elbow is ideal for plumbing applications requiring reliable connections between different pipe systems.

Product Information

Standard Information

• Brand: NIBCO
• MPN: H-16843W

Technical Specifications

• Type: Elbow
• Elbow Degree: 90 degrees
• Fitting Type: Transition Elbow
• Body Material: Lead Free DZR Brass
• End Connection 1: Press
• End Connection 2: F1807
• Fitting Size 1: three fourths inches
• Maximum Temperature: 250 degrees Fahrenheit
• Maximum Operating Pressure: 250 psi
• Industry Standards/Certifications: NSF/ANSI 61 & 372, NSF/ANSI 14
