Nibco H-10712W H-107xW series valve 1/2 in

Product Description

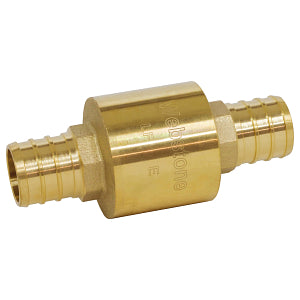

The NIBCO H-10712W is a forged DZR Brass In-Line Spring Check Valve designed to prevent back-flow in plumbing systems. This H-107xW Series valve features a stainless steel spring and soft seat, suitable for a 1/2 inch nominal size. It can withstand a pressure rating of 200 psi and a temperature rating of 250 deg F. Its compact dimensions are 1.24 inches H x 1.24 inches W x 2.83 inches L.

• Self-Automated Check Assembly Prevents Back-Flow
• Models available to satisfy all state and federal low-lead laws
• Available in FIP, SWT, PRS, GMT, PEX

Product Highlights

Forged DZR brass check valve with self-automated back-flow prevention and low-lead compliance.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: H-10712W
• Country of Origin: Import

Technical Specifications

• Body Material: DZR Brass
• Nominal Size: 1/2 in
• Pressure Rating: 200 psi
• Series: H-107xW Series
• Temperature Rating: 250 deg F
• Trim Material: DZR Brass
• Brand: NIBCO
