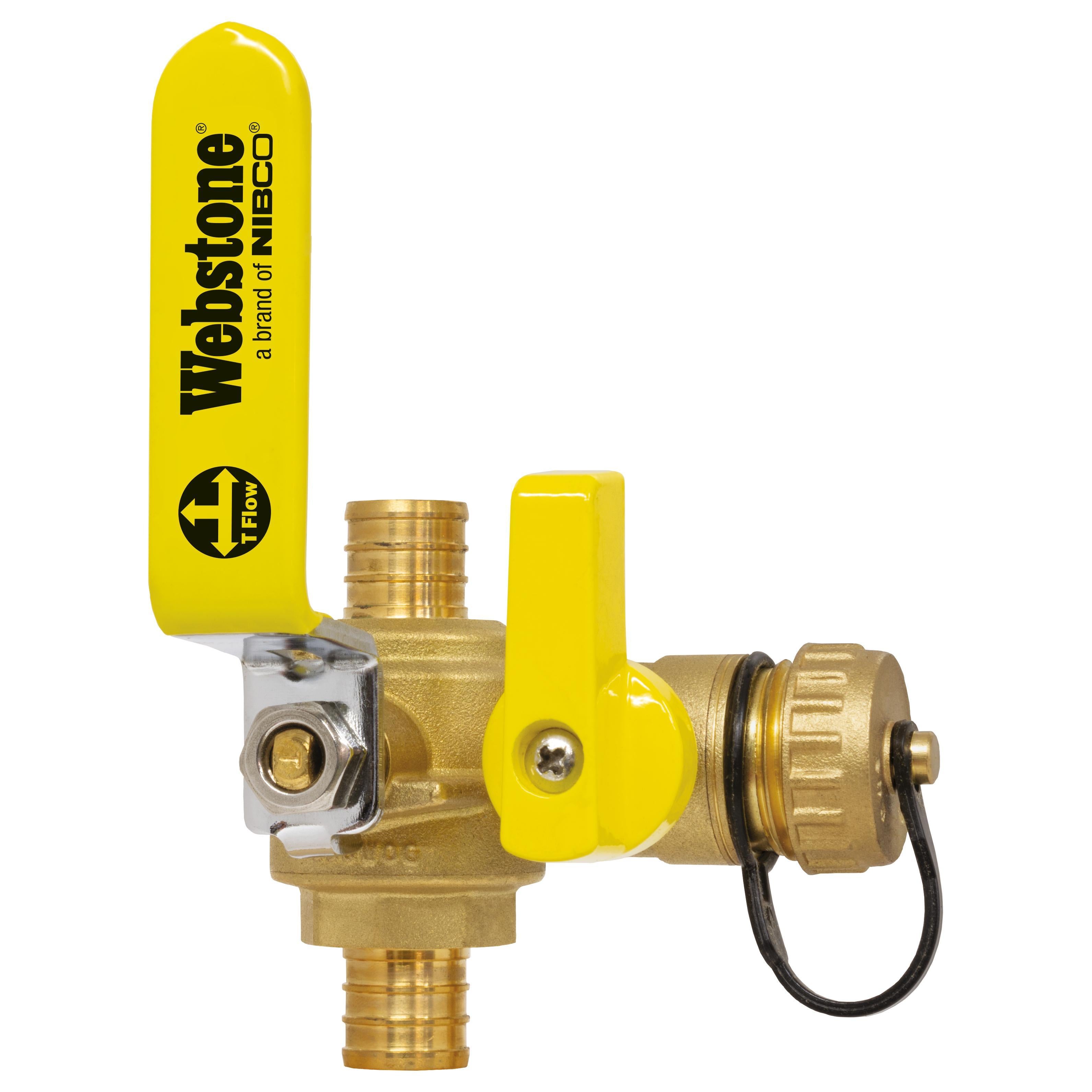

Nibco h-10613w 3/4 in Pex Ball Valve Full Port Dzr Brass

Product Description

The NIBCO h-10613w is a 3/4-inch full-port ball valve from the Webstone Pro-Pal 1061W Series, built for professional plumbing and hydronic heating applications. The body is forged DZR brass, which resists dezincification in aggressive water conditions. Softgoods are EPDM and PTFE, rated for continuous service up to 200 degrees F and 400 psi cold water pressure (CWP). PEX end connections make this valve a direct-fit choice for PEX piping systems. A reversible lever handle allows the actuator to be repositioned for tight or awkward installations. Licensed plumbers and HVAC technicians are the primary installers of this valve in both residential and light commercial systems.

This valve is designed for use in residential and commercial plumbing, hydronic heating, and closed-loop systems carrying water, oil, or glycol mixtures. The full-port design minimizes flow restriction, which is important in systems where pressure drop across isolation points affects system performance. The PEX end style integrates directly into PEX distribution manifolds, radiant heating loops, and domestic water supply lines. The compact forged brass body fits into tight mechanical spaces where multi-component assemblies would require more room and additional labor.

Key Features

• Forged DZR brass body resists dezincification in treated and potable water systems
• Full-port design provides unrestricted flow path and minimal pressure drop
• PEX end connections for direct integration into PEX piping systems
• EPDM and PTFE softgoods rated to 200 degrees F and 400 psi CWP
• Reversible lever handle accommodates varied installation orientations
• Rated for water, oil, and glycol mixture service

Compatibility

Designed as an OEM-style replacement and new-installation valve for 3/4-inch PEX plumbing and hydronic heating systems carrying water, oil, or glycol mixtures in residential and commercial applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local codes and the International Plumbing Code (IPC). Depressurize and drain the system before removing or installing any valve. PEX connections require the appropriate crimping or clamp tool and ring type specified for the PEX system in use. Confirm that the media temperature and pressure do not exceed the valve ratings before returning the system to service.

Technical Specifications

• Nominal Size: 3/4 in
• End Style: PEX
• Port Type: Full Port
• Body Material: Forged DZR Brass
• Softgoods Material: EPDM/PTFE
• Pressure Rating: 400 psi CWP
• Temperature Rating: 200 degrees F
• Actuator Type: Reversible Handle
• Media: Water, Oil, Glycol Mixture
• Inlet to Outlet Length: 2.5 inches
• Top to Inlet Center: 2.5 inches
• Overall Dimensions: 3.15 inches L x 4.49 inches W x 3.27 inches H
• Series: 1061W
• Origin: Import

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: h-10613w
