Nibco F607OTS-5 Gate Valve Pre-Grooved Stem with Outside Screw and Yoke 5 Inch Cast Iron Class 125 Flanged for MSS SP-70

Product Description

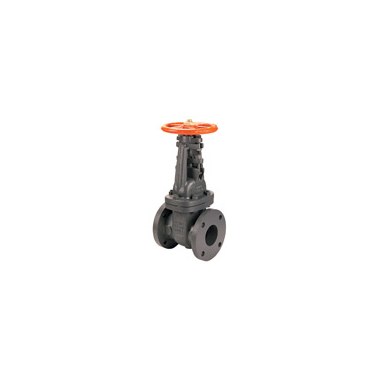

The Nibco F607OTS-5 is a gate valve designed with a pre-grooved stem and an outside screw and yoke. It is constructed from durable cast iron and features a five-inch size. The valve is rated for Class 125 flanged connections, making it suitable for various applications, particularly in fire protection systems.

• Size: 5 inches
• Material: Cast Iron
• Pressure Rating: 175 PSI Non-Shock

Product Highlights

This valve is ideal for fire protection and is compatible with MSS SP-70 standards. Its bolted bonnet design ensures reliability and ease of maintenance.

Product Information

Standard Information

• Brand: Nibco
• Part Number: F-607-OTS

Technical Specifications

• Size: 5 IN
• Material: Cast Iron
• End Connection: Class 125 Flanged
• Bonnet Type: Bolted
• Pressure Rating: 175 PSI Non-Shock
• End to End Distance: 10 IN
• Application: Fire Protection
• Used on: MSS SP-70
• Shipping Weight: 145 LBS
