Nibco F-617-O-8 Gate Valve 8 in

Product Description

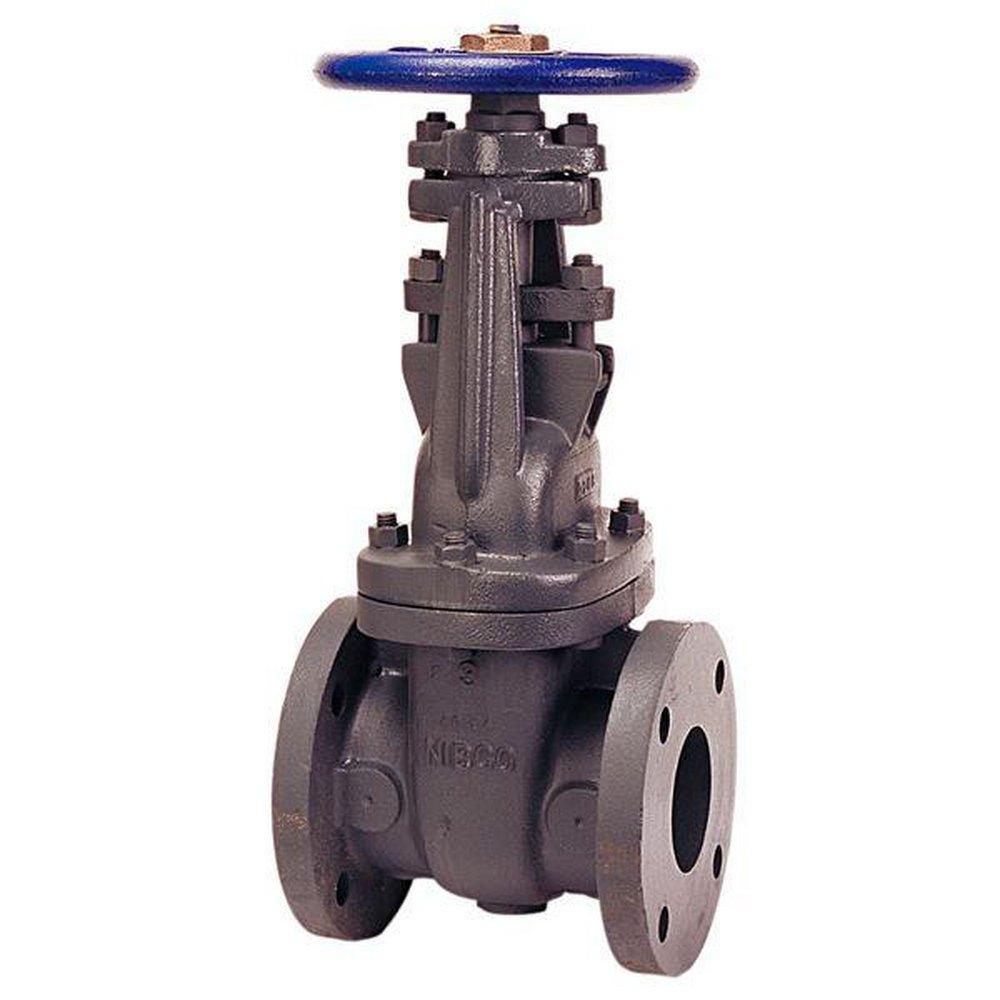

The NIBCO F-617-O-8 cast iron gate valve provides full flow with minimal pressure drop. It features a Class 125 flanged, flat face end connection for easy installation. This valve is suitable for commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services.

• Outside screw and yoke
• Solid wedge
• Bolted bonnet

Product Highlights

The NIBCO gate valve is a versatile and economical valve option in commercial, mechanical and industrial applications.

Product Information

Standard Information

• Brand: NIBCO
• Manufacturer Part Number: F-617-O-8
• Country of Origin: Domestic

Technical Specifications

• ASTM: ASTM A126 Class B, ASTM A307, ASTM A536, ASTM A563, ASTM B140, ASTM B16, ASTM B584, ASTM B783
• Collection: F-617-O
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Handle Length (in): 14
• Handle Material: Cast Iron
• Length: 11-1/2
• MSS: MSS SP-70
• Material: Cast Iron, Cast Copper
• NSF Certified: No
• Origin: Domestic
• Pressure - High: 125, 200
• Pressure Class: 125#
• Recommended Valve Application: Cold Working Pressure, Commercial, Gas, Industrial, Steam, Water
• UL Listed: No
• Valve Body Material: Cast Iron
• Valve Body Style: Flanged
• Valve Bonnet Type: Bolted
• Valve Disc Material: Cast Iron
• Valve Operator: Handwheel
• Valve Port Opening: Full Port
• Valve Seat Material: Cast Copper
• Valve Size: 8 in
• Valve Stem: Outside
• Valve Type: Gate Valve
• Actuator Type: Handwheel
• Body Material: Cast Iron
• Domestic/Import: Domestic
• End Style: Flat Face Flanged
• Hand Wheel Diameter: 14 in
• Inlet to Outlet Length: 11-1/2 in
• Media: Air/Gas/Water
• Nominal Size: 8 In
• Pressure Rating: 200 psi
• Series: F-617-O
• Softgoods Material: Synthetic Fiber
• Temperature Rating: 450 deg F
• Top to Inlet Center: 40.19 in
• Trim Material: Brass
